Product Details:
|

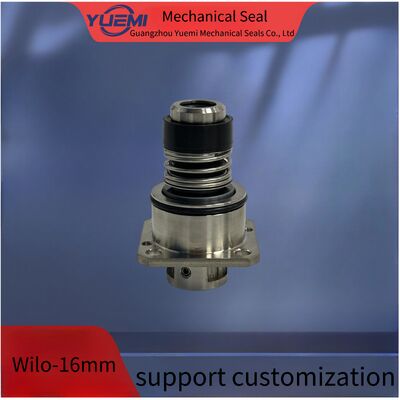

| Traemark: | YUEMI | Pump: | Wilo Pump |
|---|---|---|---|
| Function: | Sewage Pump | Shaft Diameter: | Wilo-16mm |
| Secondary Sealing: | Fkm EPDM | Standard Or Nonstandard: | Standard |
| Style: | Single Spring Mechanical Seal | ||
| Highlight: | Multi Stage Wilo Pump Mechanical Seal,16mm Wilo Pump Mechanical Seal,Wilo mechanical seal for water pump |
||
EBARA 25mm mechanical seal for EVMS, EVMSG series pumps
Material:SIC/SIC/Fkm/304
Shaft size :12mm 16mm 25mmMechanical seals for other Ebara series pumps are available:
Pump Model :
JES - JE, JESX - JEX/AGA - AGC/CD, CDX, 2CDX/DWO, DWC/CM(A-B-C-D) - CMR, CDA
PRA - PRN/SWS - SWT/COMPACT/MATRIX/CVM/MULTIGO/HVM/EVMG, EVM, EVML/
3M SERIES, 3S SERIES, 3P SERIES, 3PF SERIES/3LM SERIES, 3LS SERIES, 3LP SERIES, 3LPF SERIES
3D SERIES, 3DS SERIES, 3DP SERIES/MD, SB3, WINNER 4N, 4BHS, IDROGO
SF6, 6BHE(L), 8BHE(L)/OPTIMA, BEST ONE - BEST ONE VOX/BEST 2-5, RIGHT/DW - DW VOX
DS-DSF, DVS, DML-DMLV, DMLF-DMLVF, DL (W/C), DRD, EBAMIX, DRS/DUMPER (L)
D TANK, BEST BOX, SANIRELEV 11&22/Ego, Ego T, Ego ER, Ego B/MR B/MR S/LPS/ELINE, ELINED, LPC, LPCD
|
Temperature
|
-20ºC to 200ºC, dependent on the elastomer
|
|
Pressure
|
Up to 25 bar
|
|
Speed
|
Up to 20 m/s
|
|
Sizes
|
3/8'' 1/2'' 5/8'' 3/4'' 7/8'' 1'' |
|
Face
|
Carbon, SiC, TC
|
|
Seat
|
SiC, TC
|
|
O-rings
|
NBR, EPDM, Fkm, Aflas, Kalrez, Chemraz etc.
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive T/T, Paypal, Cash and etc.
Q6:Can you make custom products
A: of course, we can customize your request. Our factory located in guangzhou, welcome to have a visit
Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring
Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.
Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.
2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil
3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position
B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.
Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
