CDLA Water Pump Seal Stainless Steel Vertical Multistage Centrifugal Pumps Single Face Mechanical Seal

CDLA Water Pump Seal Stainless Steel Vertical Multistage Centrifugal Pumps Single Face Mechanical Seal
CDLA Water Pump Seal Stainless Steel Vertical Multistage Centrifugal Pumps Single Face Mechanical Seal CDLA Water Pump Seal Stainless Steel Vertical Multistage Centrifugal Pumps Single Face Mechanical Seal CDLA Water Pump Seal Stainless Steel Vertical Multistage Centrifugal Pumps Single Face Mechanical Seal CDLA Water Pump Seal Stainless Steel Vertical Multistage Centrifugal Pumps Single Face Mechanical Seal CDLA Water Pump Seal Stainless Steel Vertical Multistage Centrifugal Pumps Single Face Mechanical Seal

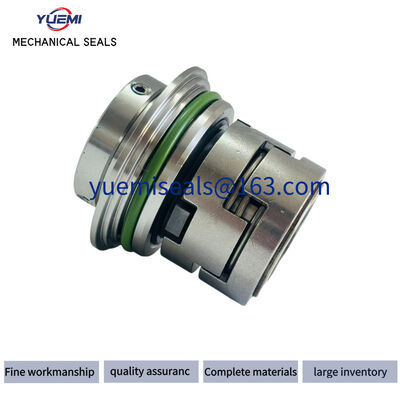

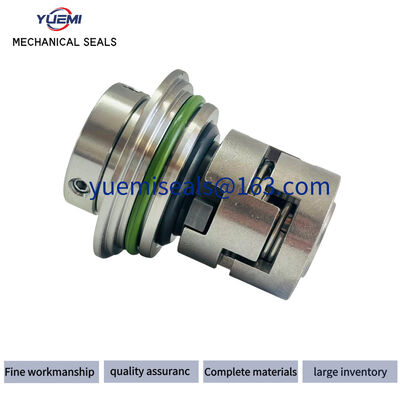

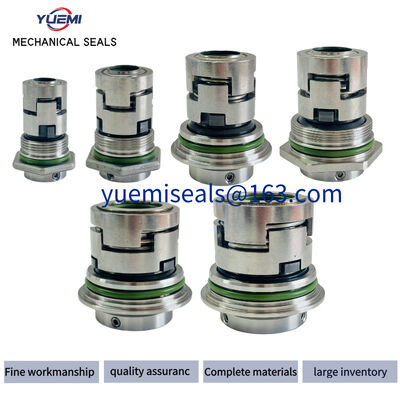

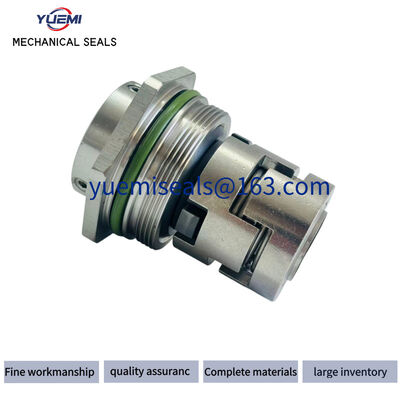

Large Image :  CDLA Water Pump Seal Stainless Steel Vertical Multistage Centrifugal Pumps Single Face Mechanical Seal

Product Details:
Brand Name: YUEMI
Model Number: CDLA
Payment & Shipping Terms:
Minimum Order Quantity: 10/PCS
Price: inquiry
Packaging Details: Carton
Delivery Time: 5-8work days
Payment Terms: T/T,D/P,D/A,L/C
Supply Ability: 100/pcs/month
Contact Now

CDLA Water Pump Seal Stainless Steel Vertical Multistage Centrifugal Pumps Single Face Mechanical Seal

Description
Sealing Face: Silicon Carbide Secondary Sealing: CA SIC
Customization: Accept Item: CDLA
Oem: Supper Stationary Ring: Ceramic/SiC/TC
Keywords: Water Pump Seal Application: Water Pumps, Chemical Pumps, Oil Pumps
Bore Size: 12 16 22 32 36 Mm Maintenance: Low Maintenance Required
Shaft Size: Full Size Temperaturerange: -20°C To 180°C
Secondary Seal: NBR/EPDM/Viton

Product Description

Working Conditions:
Mediums: Water, oil, weak acids, weak bases
                 and other general corrosive chemical media.
Temperature:   -40ºC to 150ºC
Pressure:         ≤ 1.7Mpa
Rotate speed:  ≤25m/s


CR-12/16/22/32/36 series mechanical seals are mainly used in stainless steel vertical multi-stage centrifugal pumps, suitable for oil, water and other weak corrosive fluid sealing, its structure is characterized by the internal assembly type, fork drive mode, can choose a single-end welding or double-end welding, sealing performance is reliable, easy to install.



Pump model

Seal model

Seal model

Seal model

Seal model

Seal model

CDL CDLF CDM CDMF

CDLA-12

CDLA-16

CDLA-22

CDLA-32

CDLA-36

CDLK CDLKF

CDL-12

CDL-16




CHL CHLF CHM

CHL-16

CHL-20

CHM-14

CHM-19


MS

MS-14





ZS

ZS-24

ZS-32




TD

TD-28

TD-32

TD-40

TD5-40/43

TD5-48/55

QYL QYLB

QY-15

QY-17

QY-20



NIS NISO NIF

NISO-33

NISO-43

NISO-53

NISO-60


WQ

WQ-17

WQ-20

WQ-25

WQ-30/35/40/45

WQ-50/60/70

CDLS CDLH

CDLC-12

CDLC-16

CDLC-22



SZ

SZ-30

SZ-35

SZ-40

SZ-45/50

SZ-55/60

SP

SP1-1/2

SP1-7/8






Combination Materials



Rotary ring carbon, resin-impregnated  B
tungsten carbide, cobalt-bound  U1
tungsten carbide, nickel-bound  U2
silicon carbide without free silicon  Q1
silicon carbide with free silicon  Q2
Stationary ring tungsten carbide, cobalt-bound  U1
tungsten carbide, nickel-bound  U2
silicon carbide without free silicon  Q1
silicon carbide with free silicon  Q2
Alumina  V
Auxiliary Seal nitrile synthetic rubber  P
EP synthetic rubber  E
fluorocarbon synthetic rubber  V
Spring or other metal parts CrNi steel  F
CrNiMo steel  G
Materials according to operating condition
