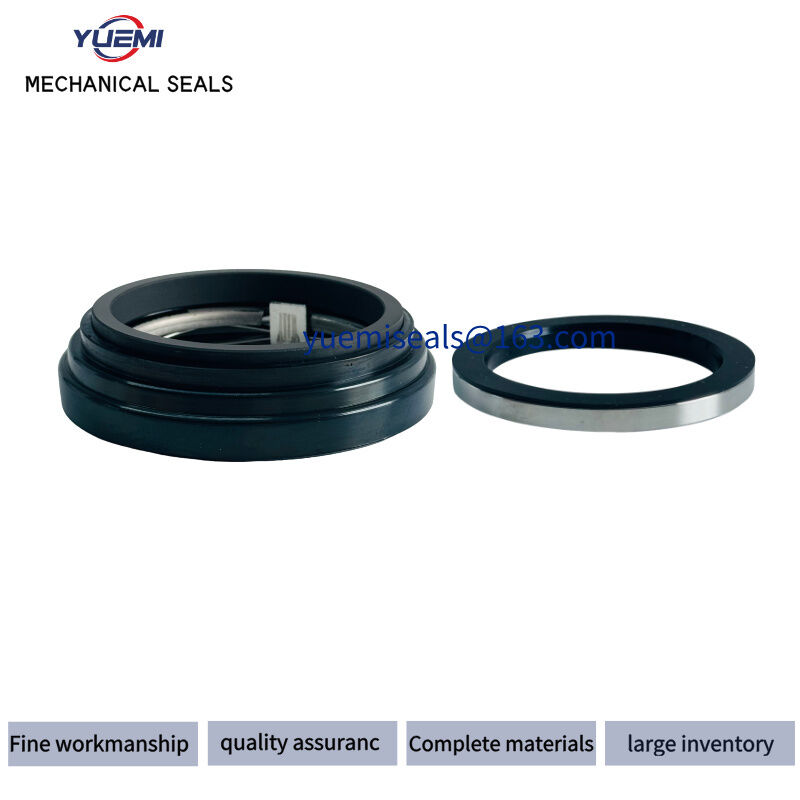

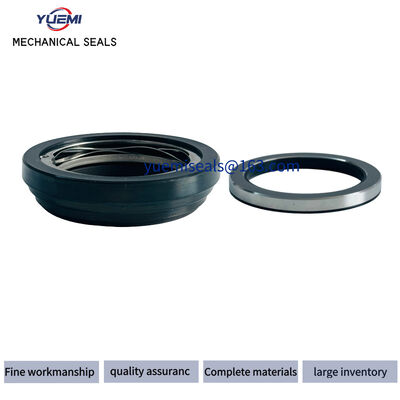

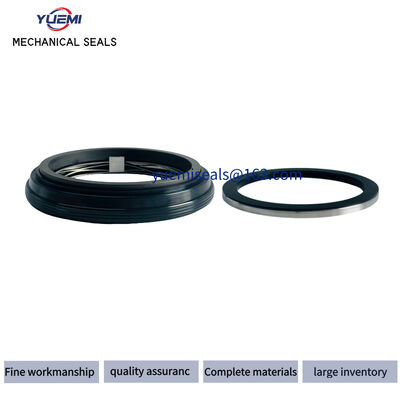

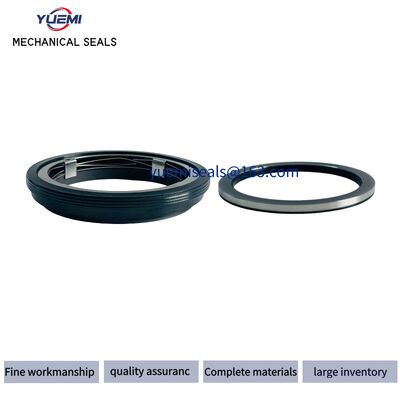

Mechanical Seal for Washing Machine Seal Customizable for Enhanced Machinery Efficiency

Mechanical Seal for Washing Machine Seal Customizable for Enhanced Machinery Efficiency
Mechanical Seal for Washing Machine Seal Customizable for Enhanced Machinery Efficiency Mechanical Seal for Washing Machine Seal Customizable for Enhanced Machinery Efficiency Mechanical Seal for Washing Machine Seal Customizable for Enhanced Machinery Efficiency Mechanical Seal for Washing Machine Seal Customizable for Enhanced Machinery Efficiency

Large Image :  Mechanical Seal for Washing Machine Seal Customizable for Enhanced Machinery Efficiency

Product Details:
Place of Origin: Guangzhou, China
Brand Name: YUE MI
Certification: ISO SGS
Model Number: YM CS
Payment & Shipping Terms:
Minimum Order Quantity: 10/PCS
Price: consult
Packaging Details: Details Carton
Delivery Time: 5-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100/Set/Month
Contact Now

Mechanical Seal for Washing Machine Seal Customizable for Enhanced Machinery Efficiency

Description
Traemark: YUEMI Sample: Avaliable
Seal Faces: CAR/SIC Application: Water Pumps, Chemical Pumps, Oil Pumps
Tungsten Carbide Seal: Water Pump Seal Standard Or Nonstand: Standard
Pump Seal: Washing Seal Sku: CS
Appliion: Water Pump Extra Service: OEM Is Welcome

AX5 or AX05 Washing Machine Seal
Temperature :-20ºC to +200ºC
Pressure :≤0.8Mpa
Speed:≤10m/s		 Material :Q1,Q2,A,B,U1,U2,P,E,V,T,F,G,T2,M5
Replacement:
Guilliver, Garlock ,AX5 AX05.
It is designeds for washing machine(laundry equipment), mixers and tanks, food processing, cosmetic or pharmaceutical products, such as For IPSO, Alliance, Primus, Lavamac
Item No: Grandimpianti SEAL RINGGR422190000300 , Grandimpianti SEAL RING 58-88-18, Grandimpianti , Axial Joint ring 58mm





Mechanical Seal for Washing Machine Seal Customizable for Enhanced Machinery Efficiency 0



Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our team can provide tailored designs to meet specific project requirements.
Parameter
Description
Model
YM CS
Application
Specifically designed for washing machines, suitable for various household and commercial washing machine models
Seal Type
Double - face mechanical seal with spring - loaded design
Seal Face Material
Silicon carbide (SiC) for the stationary face, tungsten carbide (WC) for the rotating face. Both materials offer excellent wear resistance and thermal conductivity
Seal Ring Material
High - performance fluorine - rubber compound, providing good chemical resistance and elasticity. Shore A hardness: 75 - 80
Spring Material
Stainless steel 316, ensuring corrosion resistance and reliable spring force under various working conditions
Seal Diameter
Available in multiple sizes: 20mm, 25mm, 30mm, 35mm, 40mm
Maximum Pressure Rating
1.5 MPa (15 bar), capable of withstanding high - pressure environments in washing machines
Temperature Range
-20°C to 120°C, suitable for a wide range of water temperatures during washing and rinsing cycles
Speed Limit
Up to 3000 RPM, compatible with the high - speed rotation of washing machine drums
Leakage Rate
≤0.05 ml/h under normal working conditions, ensuring excellent sealing performance
Axial Runout Tolerance
±0.03 mm, maintaining proper alignment and seal integrity during operation
Radial Clearance
0.05 - 0.1 mm, allowing for smooth rotation while preventing excessive leakage
Installation Depth
Varies according to seal diameter: 20mm diameter - 15mm 25mm diameter - 18mm 30mm diameter - 20mm 35mm diameter - 22mm 40mm diameter - 25mm
Chemical Resistance
Resistant to common laundry detergents, softeners, and bleaches. Can withstand pH range from 3 to 11
Vibration Resistance
Withstands vibration levels up to 5 m/s², ensuring stable operation even during the high - vibration spin cycle of washing machines
Lubrication Requirement
Self - lubricating design, but can also operate with water as a lubricant, which is the typical medium in washing machines
Shelf Life
5 years under proper storage conditions (dry, cool environment, away from direct sunlight and chemicals)
Certification
Meets ISO 9001 quality management system standards and complies with relevant international safety and environmental protection regulations
Assembly Instructions
Seal should be installed in a clean environment. Apply a thin layer of compatible lubricant to the seal faces and mating surfaces before installation. Tighten the installation bolts evenly to avoid uneven stress on the seal
Maintenance Tips
Regularly check for signs of wear or leakage. Replace the seal if any damage to the seal faces, rings, or springs is detected. Avoid over - tightening the bolts during installation, which may cause deformation of the seal
