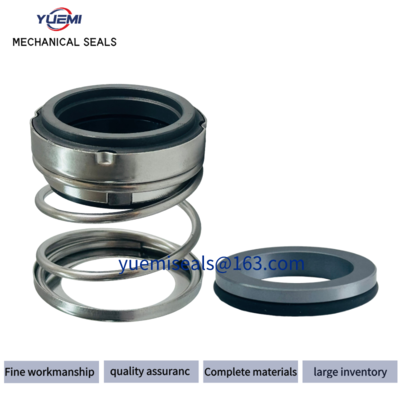

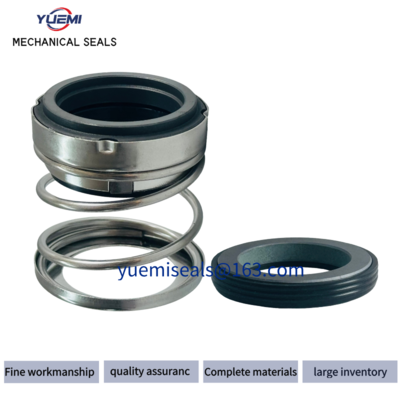

BIA Rubber Below Water Pump Seal Single Spring Mechanical Seals for Pumps Pusher Seals

BIA Rubber Below Water Pump Seal Single Spring Mechanical Seals for Pumps Pusher Seals
BIA Rubber Below Water Pump Seal Single Spring Mechanical Seals for Pumps Pusher Seals BIA Rubber Below Water Pump Seal Single Spring Mechanical Seals for Pumps Pusher Seals BIA Rubber Below Water Pump Seal Single Spring Mechanical Seals for Pumps Pusher Seals BIA Rubber Below Water Pump Seal Single Spring Mechanical Seals for Pumps Pusher Seals

Large Image :  BIA Rubber Below Water Pump Seal Single Spring Mechanical Seals for Pumps Pusher Seals

Product Details:
Place of Origin: Guangzhou, China
Brand Name: YUE MI
Certification: ISO SGS
Model Number: BIA
Payment & Shipping Terms:
Minimum Order Quantity: 15/PCS
Price: consult
Packaging Details: Details Carton
Delivery Time: 5 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500/Set/Month
Contact Now

BIA Rubber Below Water Pump Seal Single Spring Mechanical Seals for Pumps Pusher Seals

Description
Style: Customizable Temperature Range: -20°C To 120°C
Support: Non-Standard Customization Origin: CHINA
Sealing: FKM Warranty: Water Pump
Leadtime: Fast To Ship Model: BIA
Traemark: YUEMI

BIA Rubber Below Water Pump Seal Single Spring Mechanical Seals for Pumps Pusher Seals 0

Model d(mm) d3 d7 l1 l3
YM BIA-14 14 27.0 30 23.7 5.0
YM BIA-16 16 28.5 32 26.0 5.0
YM BIA-18 18 30.5 35 30.0 7.5
YM BIA-20 20 34.0 35 29.0 8.0
YM BIA-25 25 39.0 40 33.5 8.0
YM BIA-28 28 42.0 43 33.5 8.0
YM BIA-30 30 44.0 45 34.5 9.0
YM BIA-32 32 47.0 48 42.5 9.0
YM BIA-33 33 47.0 48 42.5 9.0
YM BIA-35 35 49.0 50 42.5 9.0
YM BIA-38 38 54.0 56 42.5 9.0
YM BIA-40 40 56.0 58 42.5 9.0
YM BIA-43 43 59.0 61 46.0 9.5
YM BIA-45 45 62.0 63 47.5 9.5
YM BIA-48 48 64.0 66 47.5 9.5
YM BIA-50 50 66.0 70 47.5 9.5
YM BIA-53 53 69.0 73 50.5 9.5
YM BIA-55 55 72.0 75 50.5 9.5
YM BIA-58 58 80.0 78 51.5 9.5
YM BIA-60 60 80.0 80 51.5 9.5
YM BIA-70 70 90.0 92 56.0 11.0



Performance Capabilities:

Temperature
-30ºC to 200ºC, dependent on the elastomer
Pressure
 ≤1.0MPa
Speed
 ≤10m/s
End play/axial float allowance
±0.1mm
Size
14-70MM
Brand
YUEMI
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM
Spring
SS304
Metal parts
SS304
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.





If the seal is not the one you need, contact us and inform us your pump model or drawing, material, shaft size for quotation. We will advise you and offer you corresponding mechanical seals.
Customized products and OEM is welcomed.
We offer factory price, high quality, fast delivery and best services.
