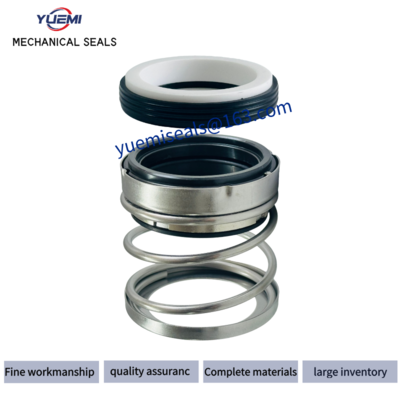

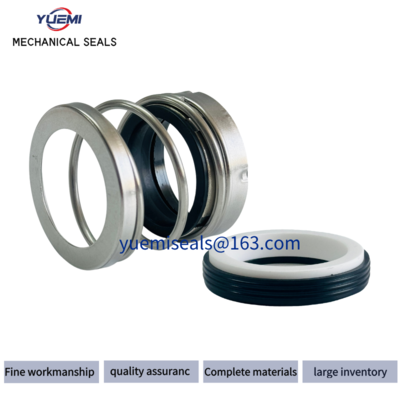

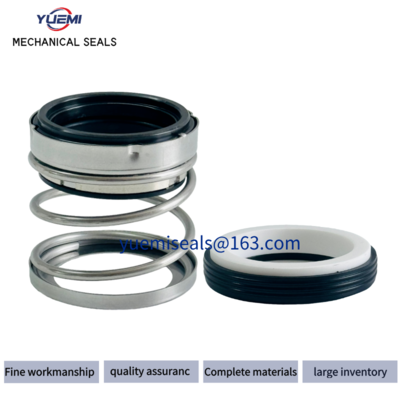

Type560B John Crane Type 21 Spring Elastomer Bellow Seal for Water Pump

Type560B John Crane Type 21 Spring Elastomer Bellow Seal for Water Pump
Type560B John Crane Type 21 Spring Elastomer Bellow Seal for Water Pump Type560B John Crane Type 21 Spring Elastomer Bellow Seal for Water Pump Type560B John Crane Type 21 Spring Elastomer Bellow Seal for Water Pump

Large Image :  Type560B John Crane Type 21 Spring Elastomer Bellow Seal for Water Pump

Product Details:
Place of Origin: Guangzhou, China
Brand Name: YUE MI
Certification: ISO SGS
Model Number: 560B
Payment & Shipping Terms:
Minimum Order Quantity: 10/PCS
Price: consult
Packaging Details: Details Carton
Delivery Time: 5-15 work days
Supply Ability: 100/Set/Month
Contact Now

Type560B John Crane Type 21 Spring Elastomer Bellow Seal for Water Pump

Description
Operating Temperature: -20～35℃ Standard Or Nonstand: Standard
Seal Faces: CAR/SIC Stainless Steel Material: SS304.SS316
Compatibility: Fits Most Standard Water Pump Models Secondary Sealing: Fkm NBR CA SIC
Mounting Type: Direct Replacement Fluid Compatibility: Water, Oil, Mild Chemicals
Seal Face: Silicon Carbide Sealing Face: Silicon Carbide
Model: 560B

Type560B John Crane Type 21 Spring Elastomer Bellow Seal for Water Pump 0

Model

d1

(inches)

 d3 d6 d7 l1 l3
YM 560B-3/8" 9.525 23.5 14.3 22.230 28.6 7.9
YM 560B-1/2" 12.700 26.0 17.5 25.400 28.6 7.9
YM 560B-5/8" 15.875 30.0 20.6 31.750 32.5 10.3
YM 560B-3/4" 19.050 32.5 23.8 34.930 32.5 10.3
YM 560B-7/8" 22.225 37.5 27.0 38.100 34.1 10.3
YM 560B-1" 25.400 44.0 30.2 41.280 36.5 11.1
YM 560B-1 1/8" 28.575 48.0 33.3 44.450 38.1 11.1
YM 560B-1 1/4" 31.750 50.0 36.5 47.630 38.1 11.1
YM 560B-1 3/8" 34.925 54.5 39.7 50.800 39.7 11.1
YM 560B-1 1/2" 38.100 58.5 42.9 53.980 39.7 11.1
YM 560B-1 5/8" 41.275 64.0 46.0 60.330 47.6 12.7
YM 560B-1 3/4" 44.450 67.0 49.2 63.500 47.6 12.7
YM 560B-1 7/8" 47.625 71.0 52.4 66.680 50.8 12.7
YM 560B-2" 50.800 73.5 55.6 69.850 50.8 12.7
YM 560B-2 1/8" 53.975 75.6 / 76.200 57.2 14.3
YM 560B-2 1/4" 57.150 80.0 65.0 79.380 57.2 14.3
YM 560B-2 3/8" 60.325 79.6 / 82.550 57.2 14.3
YM 560B-2 1/2" 63.500 84.9 70.0 85.730 60.3 14.3
YM 560B-2 5/8" 66.675 84.6 / 85.725 65.1 15.9
YM 560B-2 3/4" 69.850 93.0 / 88.900 65.1 15.9
YM 560B-3" 76.200 102 / 98.425 68.3 15.9



DETAILS

Shaft Size 8mm to 50mm 3/8'' to 3''
Material Face: Carbon, SiC, TC
Seat: Ceramic, SiC, TC
O-rings:NBR, EPDM, VITON
Other Metal Parts : SS316, SS304
Temperature -20ºC to 150ºC, dependent on the elastomer
Pressure Up to 8 bar
Speed Up to 10 m/s
End play/axial float allowance ±0.1mm



FAQ

F: Can you provide free samples

A: We do not provide free samples for the first time, but we can deduct the sample amount from future bulk orders



F: What is your delivery time

A: For products that are in stock, we can ship them out within 48 hours. For products that are out of stock or in large quantities, we need to communicate separately



F: What services can you provide

A: We provide OEM service



F: What are your payment terms

A: For most of the inventory products, we need to pay 100% in full; For products that require large-scale production or customization, we require a 30% advance payment. After confirming the accuracy of the product, the remaining 70% will be paid in full before shipment
