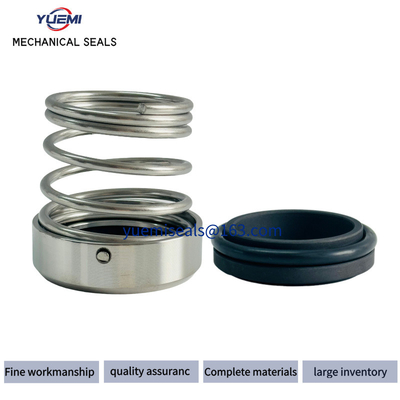

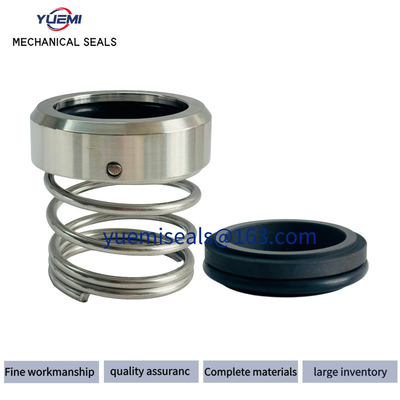

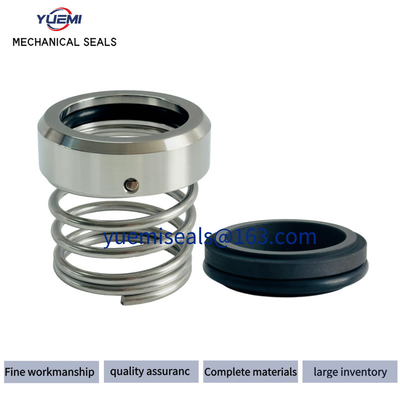

551 Spring Mechanical Seal - for Water Pumps Bgm/ M3n/ M32n/ M37, Mtu 551 Seal

551 Spring Mechanical Seal - for Water Pumps Bgm/ M3n/ M32n/ M37, Mtu 551 Seal
551 Spring Mechanical Seal - for Water Pumps Bgm/ M3n/ M32n/ M37, Mtu 551 Seal 551 Spring Mechanical Seal - for Water Pumps Bgm/ M3n/ M32n/ M37, Mtu 551 Seal 551 Spring Mechanical Seal - for Water Pumps Bgm/ M3n/ M32n/ M37, Mtu 551 Seal

Large Image :  551 Spring Mechanical Seal - for Water Pumps Bgm/ M3n/ M32n/ M37, Mtu 551 Seal

Product Details:
Place of Origin: Guangzhou, China
Brand Name: YUE MI
Certification: ISO SGS
Model Number: 551
Payment & Shipping Terms:
Minimum Order Quantity: 30/PCS
Price: consult
Packaging Details: Details Carton
Delivery Time: 5-8 word days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500/Set/Month
Contact Now

551 Spring Mechanical Seal - for Water Pumps Bgm/ M3n/ M32n/ M37, Mtu 551 Seal

Description
Stainless Steel Material: SS304.SS316 Model No: 551
Standard Or Nonstand: Standard Quality Control: 100% Control
Leadtime: In Stock Package: Standard Export Package
Oem Service: Available Origin: Guangzhou, China
Export Area: All Over The World Traemark: YUEMI
Style: Customizable





  • Operation Parameters:

    • Pressure: 0.8 MPa or less
    • Temperature: - 20 ~ 180 ºC
    • Linear Speed: 10 m/s or less

    Materials:

    • Rotary Ring Face: SS316L/SiC/TC
    • Stationary Ring Face: Carbon/SiC/TC
    • Elastomers: NBR/Viton/EPDM/PTFE/FFKM
    • Springs: SS304/SS316
    • Metal Parts: 410S/SS304/SS316/SS316L

    Mediums: oil, water, weak acid, alkali, and organic solvents.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements

  • 551 Spring Mechanical Seal - for Water Pumps Bgm/ M3n/ M32n/ M37, Mtu 551 Seal 0

Size d(mm) d3 BT G4 G9 G6
d7 l1 l3 d7 l1 l3 d7 d8 l1 l3 d7 l1 l3
8 18 17.1 15 5.5 19.2 11.9 7.0
10 19 18.1 15 5.5 19.2 15.5 6.6 21 3 15.5 10 21 15.5 6.6
11 20 20.6 18 5.5
12 21 20.6 18 5.5 21.6 16.0 5.6 23 3 16.0 10 23 16.0 6.6
13 22 23.0 22 6.0
14 23 23.1 22 6.0 24.6 16.5 5.6 25 3 16.5 10 25 16.5 6.6
15 24 26.9 22 7.0 24.6 18.0 6.6
16 26 26.9 23 7.0 28.0 18.0 7.5 27 3 18.0 10 27 18.0 6.6
17 26 26.9 23 7.0
18 29 30.9 24 8.0 30.0 19.5 8.0 33 3 19.5 11.5 33 19.5 7.5
19 31 30.9 25 8.0 35.0 22.0 7.5
20 31 30.9 25 8.0 35.0 22.0 7.5 35 3 22.0 11.5 35 22.0 7.5
22 33 35.4 25 8.0 35.0 21.5 7.5 37 3 21.5 11.5 37 21.5 7.5
23 36 35.4 27 8.0
24 35 35.4 27 8.0 38.0 23.5 7.5 39 3 23.5 11.5 39 23.5 7.5
25 36 38.2 27 8.5 38.0 26.5 7.5 40 3 26.5 11.5 40 26.5 7.5
26 37 38.2 27 8.5 40.0 26.5 8.0
28 40 43.3 29 9.0 42.0 26.5 9.0 43 3 26.5 11.5 43 26.5 7.5
30 43 43.3 30 9.0 45.0 26.5 10.5 45 3 26.5 11.5 45 26.5 7.5
32 46 43.3 30 9.0 48.0 28.5 10.5 48 3 28.5 11.5 48 28.5 7.5
33 47 53.5 39 11.5 28.5 28.5
34 48 53.5 39 11.5
35 49 53.5 39 11.5 52.0 28.5 11 50 3 28.5 11.5 50 28.5 7.5
36 50 53.5 39 11.5
38 53 60.5 39 11.5 55.0 33.5 10.3 56 4 33.5 14.0 56 33.5 9.0
40 56 60.5 39 11.5 58.0 36.0 10.8 58 4 36 14.0 58 36.0 9.0
42 59 60.5 39 11.5 62.0 38.5 12.0
43 59 60.5 39 11.5 62.0 38.5 12.0 61 4 38.5 14.0 61 38.5 9.0
44 60 65.5 41 11.5
45 61 65.5 41 11.5 64.0 39.5 11.6 63 4 39.5 14.0 63 39.5 9.0
48 64 65.5 41 11.5 68.4 46.0 11.6 66 4 46.0 14.0 66 46.0 9.0
50 66 72.5 45 11.5 69.3 45.0 11.6 70 4 45.0 15.0 70 45.0 9.5
53 69 73 4 47.0 15.0 70 47.0 9.5
55 71 72.5 47 11.5 75.4 49.0 13.3 75 4 49.0 15.0 75 49.0 11.0
58 76 78.4 55.0 13.3 78 4 55.0 15.0 78 55.0 11.0
60 78 79.3 49 11.5 80.4 55.0 13.3 80 4 55.0 15.0 80 55.0 11.0
63 83 83 4 55.0 15.0 83 55.0 11.0
65 84 84.5 51 11.5 85.4 55.0 13.0 85 4 55.0 15.0 85 55.0 11.0
68 88 91.5 55.0 13.7 90 4 55.0 18.0 90 55.0 11.3
70 90 89.5 51 11.5 92.0 57.0 13.0 92 4 57.0 18.0 92 57.0 11.3
75 98 94.5 57 11.5 99.0 62.0 14.0 97 4 62.0 18.0 97 62.0 11.3
80 100 99.5 59 11.5 104.0 61.8 15.0 105 4 61.8 18.2 105 61.8 12.0

  • Basic Features

    Structure: Single End
    Pressure: Low Pressure Mechanical Seals
    Speed: General Speed Mechanical Seal
    Temperature: General Temperature Mechanical Seal
    Performance: Wear
    Standard: DIN24960, ISO3069, GB6556
    Model NO.: 551, 551A, BT-RN
    Balance: Unbalanced
    Specification: Inner Diameter: 10 mm to 55 mm

    Product Detailed Description
    BESTSEAL Type 551 551A Single Coil Spring Mechanical Seal for Water Pumps, Temperature Control Pumps, Vacuum Pumps and Heat-exchange Oil Pumps

    Structural Features: single end, unbalanced, conical spring, dependent direction of rotation, spring transmission. This seal component has a simple structure, high compatibility and stable performance with great spring compensation.

    Industrial Standards: DIN24960, ISO3069, GB6556

    Scopes of Application: widely used in water pumps, temperature control pumps, vacuum pumps and heat-exchange oil pumps. Mainly used in leathering, waste water treatment, plastic, and food machinery industry. This product can be an alternative to similar products such as John Crane Type 551 or EagleBrgmann BT-RN.
