Product Details:
|
| Secondary Sealing: | Fkm NBR EPDM CA SIC | Service: | OEM Customized Services |
|---|---|---|---|
| Pump Seal: | Single End | Tungsten Carbide Seal: | Water Pump Seal |
| Working Temperature: | -20~140℃ | Rotary Ring: | Carbon/Sic/TC |
| Oem: | Supper | Number Of Row: | Single Row |

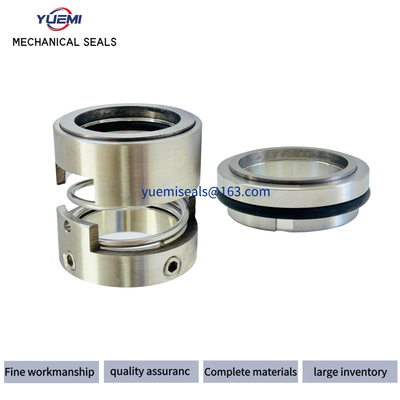

| Highlight: | 106U Mechanical Seal,Chemical Centrifugal Pumps Mechanical Seal,Auto Unbalanced Mechanical Seal |
||
| Model | Parameter | Operating Condition | Material | |||||
| Temperature | Pressure | Speed | Rotary Ring | Stationary Ring | Auxiliary Seal | Spring & Other parts | ||
| LX 106U | -20 to 80ºC | <=0.6MPa | <=14m/sec | Use for oil,water,salt,noncrystalline agent, organic solvents and other weak corrosive flid. | Carbon/Sic/TC | Machined Carbon/SIC/ TC |
PTFE/EPDM/VItion | SUS 304/ 316 |
| MODEL | d1 | d3 | D4 | D6 | D7 | d8 | L1 | L3 | L4 | L5 | L6 | L7 |
| 106U-28 | 28 | 42 | 44 | 37 | 43 | 3 | 50 | 39 | 11 | 2 | 5 | 9 |
| 106U-35 | 35 | 49 | 51 | 44 | 50 | 3 | 55 | 42 | 13 | 2 | 5 | 9 |
| 106U-38 | 38 | 54 | 58 | 48 | 56 | 4 | 55 | 42 | 13 | 2 | 6 | 9 |
| 106U-40 | 40 | 56 | 60 | 50 | 58 | 4 | 55 | 42 | 13 | 2 | 6 | 9 |
| 106U-45 | 45 | 63 | 65 | 55 | 53 | 4 | 55 | 42 | 13 | 2 | 6 | 9 |
| 106U-48 | 48 | 64 | 68 | 58 | 66 | 4 | 60 | 47 | 13 | 2 | 6 | 9 |
| 106U-50 | 50 | 66 | 70 | 62 | 70 | 4 | 60 | 47 | 13 | 2.5 | 6 | 9 |
| 106U-55 | 55 | 75 | 75 | 67 | 75 | 4 | 70 | 55 | 15 | 2.5 | 6 | 9 |
Scopes of Application: widely used in many types of chemical centrifugal pumps and other rotary devices. Widely used in industries such as chemical processing, oil refining, petrochemical engineering, sewage treatment, power generation, paper making, pharmacy and so on.
Operation Parameters:
Pressure: 0.8 MPa or less
Temperature: - 20 ~ 150 ºC
Linear Speed: 15 m/s or less
Mediums: oil, water and solvents. noncrystalline acid, alkali, salt and organic solvents.
Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
