224/225 type Double Face Mechanical Seals Bellows Water Pump for Chemical Pump

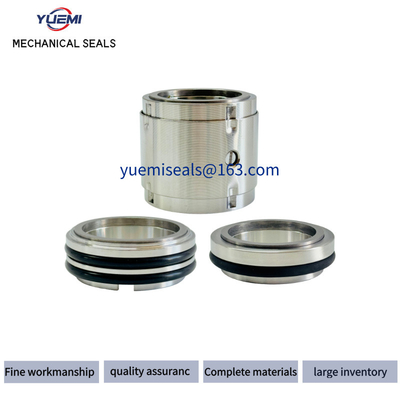

Large Image : 224/225 type Double Face Mechanical Seals Bellows Water Pump for Chemical Pump

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	YUE MI
Certification:	ISO SGS
Model Number:	224

Payment & Shipping Terms:

Minimum Order Quantity:	5/PCS
Price:	consult
Packaging Details:	Details Carton
Delivery Time:	5-8 word days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100/Set/Month

Contact Now

224/225 type Double Face Mechanical Seals Bellows Water Pump for Chemical Pump

Description

Stationary Ring:	Ceramic/Sic/TC	Package:	Neutral Packing Or Customized
Operating Conditions:	Clean Water, Sewage, Oil, Corrosive Fluids	Speed:	≤15m/s
Performance:	High Pressure	Hs Code:	848420090
Traemark:	YUEMI Mechanical Seal	Speed Range:	Up To 10 M/s
Temperature Range:	-20°C To 180°C	Applicable Industries:	Automobile
Usage:	Unbalanced	Spring Type:	Single Or Multiple Springs
Highlight:	Double Face Mechanical Seals , Bellows Water Pump Mechanical Seals , Chemical Pump Mechanical Seals

224/225 type Double Face Mechanical Seals Bellows Water Pump for Chemical Pump 0

d	D	D1	D2	L	L1	L2
35	51	44	50	87	54	74
40	60	50	58	99	62	86
45	65	55	63	99	62	86
50	70	62	70	99	62	86
55	75	67	75	105	62	86
60	85	72	80	105	62	90
65	89	77	85	105	62	90
70	95	84	92	105	63	90
75	102	87	97	105	63	88
80	107	95	105	105	63	88
85	112	100	110	105	63	88

224 Mechanical seals for pump Chat Now Add to Basket Product Attribute Product Description Introduction:Profile Weak acid and weak base liquid.
This product is required for cool rinsing with rapid flowing.
Select reasonable frication disc as per work condition, and is to run soundly for long time in SIO02858 chemical pump

Product Name	Mechanical Seal
Type	224
Operating limits	Pressure	≤1.0MPa
	Temperature	-20-180ºC
	Speed	≤15m/s
	Medium	Water, Sewage, Sea water, Oil, Acid, Organic solvent, Crystalline acid, Amorphous acid, Alkali, Salt, Corrosive liquid, Non-corrosive liquid, etc.
Material	Stationary Face Material	Ca (Carbon graphite)
		Sic (Silicon carbide)
		Cer (Ceramic)
		TC (Tungsten carbide)
	Rotary Face Material	Ca (Carbon graphite)
		Sic (Silicon carbide)
		Cer (Ceramic)
		TC (Tungsten carbide)
	Secondary Seal Material	NBR
		FKM(VT)
		EPDM
		PTFE
	Metal Component	ss304
	Metal Component	ss316
Specification	35/40/45/50/55/60/65/70/75/80/85
