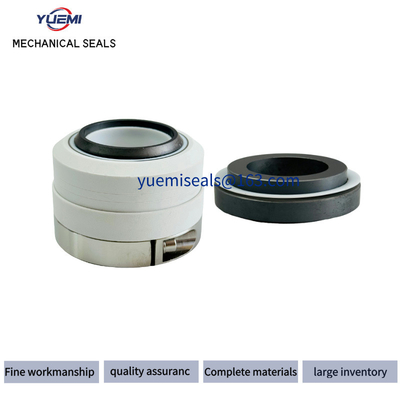

Product Details:
|
| Keywords: | T11/John Crane 10t | Seal Type: | WB2 Seal |
|---|---|---|---|
| Installation: | Easy To Install | Secondary Seal: | PTFE/SIC/SIC |
| Extra Service: | OEM Is Welcome | Transport: | Air Or Sea |
| Highlight: | Industrial Pump WB2 Mechanical Seal,Chemical Pump WB2 Mechanical Seal,PTFE WB2 Mechanical Seal |
||
|
Seal size d(mm) |
d3 |
d1 |
d2 |
|
30 |
66 |
54 |
66 |
|
35 |
71 |
58 |
70 |
|
40 |
76 |
63 |
76 |
|
45 |
81 |
68 |
82 |
|
50 |
86 |
73 |
86 |
|
55 |
91 |
78 |
90 |
|
60 |
96 |
83 |
95 |
|
65 |
111 |
88 |
100 |
| SIZE/INCH | D3 | D6 | D7 | L1 | L3 | L2 |
| d | ||||||
| 25.4 | 60 | 42.86 | 54 | 42 | 45 | 17.5 |
| 28.6 | 67 | 46.03 | 60 | 42 | 45 | 27.0 |
| 31.8 | 69 | 50.8 | 65 | 42 | 45 | 27.0 |
| 34.9 | 72 | 53.98 | 68 | 42 | 45 | 27.0 |
| 38.1 | 76 | 57.15 | 71 | 42 | 45 | 27.0 |
| 41.3 | 80 | 63.5 | 78 | 42 | 45 | 27.0 |
| 44.5 | 84 | 66.68 | 81 | 44 | 46 | 27.0 |
| 47.6 | 86 | 69.85 | 84 |
| Shaft Size | All size |
| Material | Face: PTFE glassfibre, Carbon, SIC, TC Seat: Ceramic, SiC, TC Bellow:PTFE Spring:SS316, hastelloy C Other Metal Parts : SS316, SS304 |
| Temperature | 120ºC max |
| Pressure | Up to 0.5bar |
| Speed | Up to 10m/s |
| End play/axial float allowance | ±0.1mm |
