Type Single End 105 Multi-Spring Mechanical Seals / Chemical Centrifugal Pumps , Screw Pumps And Sewage Pumps

Name: Type Single End 105 Multi-Spring Mechanical Seals / Chemical Centrifugal Pumps , Screw Pumps And Sewage Pumps
Brand: YUEMI
SKU: 105
Price: 125.00 USD
Availability: InStock

All Products

Water Pump Mechanical Seal
(284)

Grundfos Pump Mechanical Seal
(26)

Flygt Mechanical Seal
(26)

Ebara Mechanical Seal
(8)

Lowara Mechanical Seal
(5)

APV Pump Mechanical Seal
(10)

Wilo Pump Mechanical Seal
(5)

CNP Mechanical Seal
(24)

Medium Mechanical Seal
(19)

Rotor Pump Mechanical Seal
(10)

AFL Mechanical Seal
(7)

Printing Dyeing Equipment Mechanical Seal
(2)

Best Products

OEM/ODM 58U/59U Pump John Crane Seal Sewage Pumps Reactors Chemical Pumps Single Face Mechanical Seal

Certification

Customer Reviews

The product is exquisitely crafted and the logistics time is fast. The customer service attitude is worth praising. We will continue to purchase if needed next time.

—— Zongla Weimeng

This was a very pleasant collaboration, and the seller has strong product expertise. The delivery time is very fast. A company worth recommending.

—— Alexander Kovich

The merchant responded very enthusiastically and quickly. My device was leaking and could not function properly. Please take a picture of the product and send it to customer service, who will immediately help me accurately determine the product model.

—— Williams

A mechanical seal company that frequently cooperates with, and the company has a complete range of goods. The quality can completely replace the original seal, and the price is not high. The service attitude is very good. Worth recommending

—— selma neves

I'm Online Chat Now

Type Single End 105 Multi-Spring Mechanical Seals / Chemical Centrifugal Pumps , Screw Pumps And Sewage Pumps

Large Image : Type Single End 105 Multi-Spring Mechanical Seals / Chemical Centrifugal Pumps , Screw Pumps And Sewage Pumps

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	YUE MI
Certification:	ISO SGS
Model Number:	105

Payment & Shipping Terms:

Minimum Order Quantity:	10/PCS
Price:	consult
Packaging Details:	Details Carton
Delivery Time:	5-8 word days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200/Set/Month

Contact Now

Type Single End 105 Multi-Spring Mechanical Seals / Chemical Centrifugal Pumps , Screw Pumps And Sewage Pumps

Description

Features:	High Temperature Resistance, Corrosion Resistance, Easy Installation	Oem:	Specification
Keywords:	Water Pump Seal	Spring Material:	Stainless Steel
Metal Parts:	SS304, SS316	Export Area:	All Over The World
Shaft Size:	Full Size	Trademark:	YUEMI
Face Combination:	Carbon Vs Silicon Carbide
Highlight:	Sewage Pumps Mechanical Seals , Chemical Centrifugal Pumps Mechanical Seals , Screw Pumps Mechanical Seals

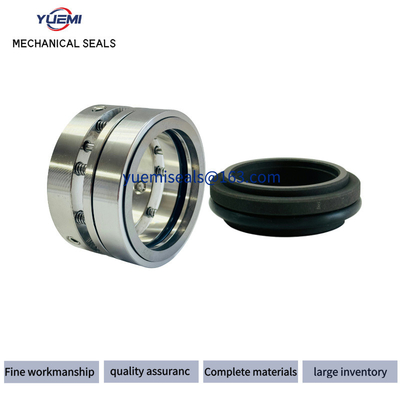

105 105B Multiple Spring Water Pump Shaft Seal

Type 105 Operating limits

Pressure:≤0.8MPa
Potational speed:≤3000r/min
Linear speed:≤20m/s

Temperature:
0ºC~+180ºC(FPM)
-20ºC~+90ºC(NBR)
-30ºC~+120ºC(EPR)
-40ºC~+230ºC(PTFE)
-40ºC~+230ºC(PTFE cover rubber)

Type 105B Operating limits

Pressure: 1.6 MPa or less
Temperature: - 20 ~ 220 ºC
Linear Speed: 15 m/s or less

Material:
Rotary Ring: Carbon/SiC/TC
Stationary Ring: SiC/TC
Elastomers: NBR/EPDM//Aflas/PTFE/FFKM
Springs: SS304/SS316

Mediums: weak acid, weak alkalis, water and solvents

Type Single End 105 Multi-Spring Mechanical Seals / Chemical Centrifugal Pumps , Screw Pumps And Sewage Pumps 0

P Do D D1 D2 D3 L1 L2 L3 L4
35	28	57	45	55	60	38	53	48	63
40	34	62	50	60	65	38	53	48	63
45	38	67	55	65	70	39	54	49	64
50	44	72	60	70	75	39	54	49	64
55	48	77	65	75	80	39	54	49	64
60	52	82	70	80	85	39	54	49	64
65	58	91	80	90	95	44	62	51	69
70	62	96	85	97	100	44	65	54	75
75	66	101	90	102	105	44	65	54	75
80	72	106	95	107	110	44	65	54	75
85	76	111	100	112	115	46	67	56	77
90	82	116	105	117	120	46	67	56	77
95	85	121	110	122	125	46	67	56	77
100	90	126	115	127	130	46	67	56	77
110	100	140	130	142	145	51	74	63	86

Type Single End 105 Multi-Spring Mechanical Seals / Chemical Centrifugal Pumps , Screw Pumps And Sewage Pumps 1
