Product Details:
|
| Elatomer: | NBR, EPDM, Viton | Secondary Seal: | NBR, EPDM, Viton |
|---|---|---|---|
| Standard Or Nonstand: | Standard | Operating Temperature: | -20～180℃ |
| Shaft Size: | Full Size | Appliion: | Water Pumps |
| Sealing: | FKM CAR SIC TC CE NBR EPDM | Sku: | 103 |
| Type: | Plugin Seal | ||
| Highlight: | Food Industrial Pumps Mechanical Seals,Water Pump Seals Mechanical Seals,Elastomer Bellows Mechanical Seals |
||

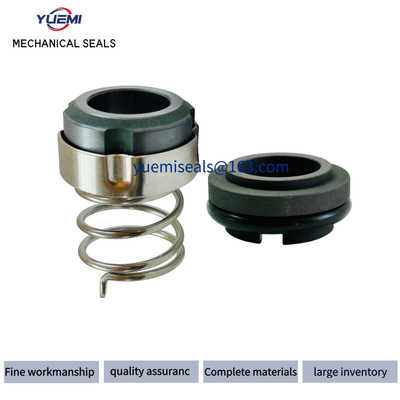

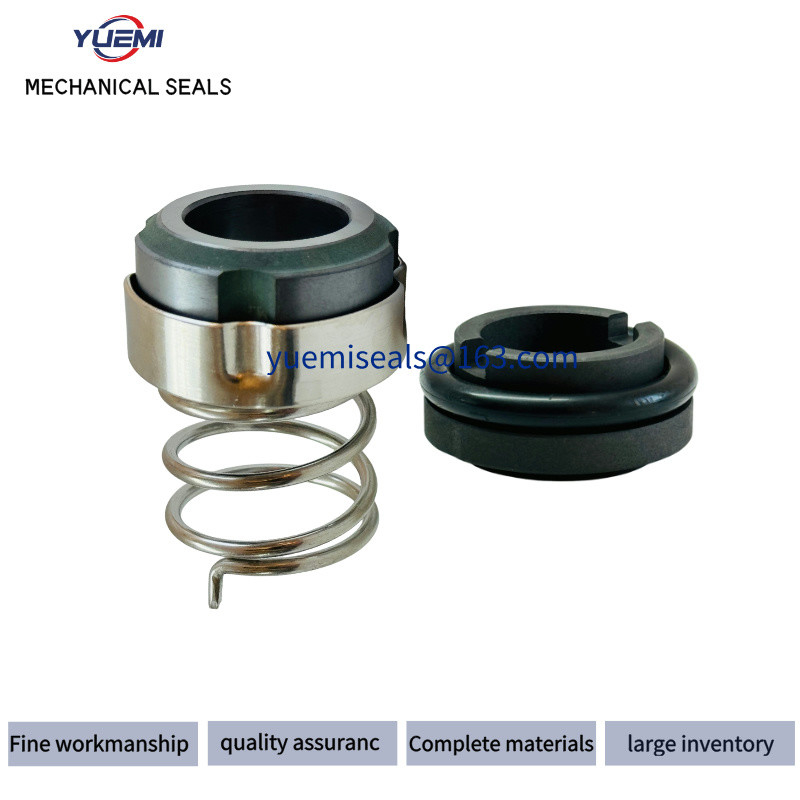

| Structural Features: single end, unbalanced, fixed direction of rotation, touched coil spring transmission. This component has a touched coil spring so you need to pay attention to the shaft rotating direction. |
| Scopes of Application: widely used in many types of chemical pumps and clean water pumps. |
| 0.8 MPa or lessOperation Parameters: |
| Temperature: - 20 ~ 220 ºC |
| Linear Speed: 15 m/s or less |
| Rotary Ring: Carbon/SiC/TC |
| Stationary Ring: SiC/TC |
| Elastomers: NBR/EPDM/FKM/Aflas/PTFE/FFKM |
| Springs: SS304/SS316 |
| Metal Parts: 410S/SS304/SS316/SS316L |
Mediums: weak acid, weak alkalis, water and solvents.
Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
| Structure: Single End |
| Pressure: Medium Pressure Mechanical Seals |
| Speed: General Speed Mechanical Seal |
| Temperature: High Temperature Mechanical Seal |
| Performance: Wear |
| Model NO.: Type 103 |
| Balance: Unbalanced |
| Specification: Inner Diameter: 20 mm to 120 mm |
