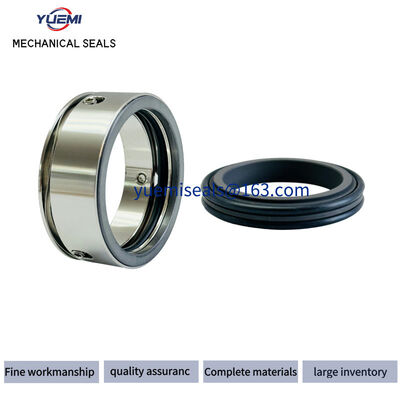

Wave Spring Seal W01u For Alfa , Inoxpa , Jabsco , Johnson EPDM/SIC/CAR-35mm/50mm

Name: Wave Spring Seal W01u For Alfa , Inoxpa , Jabsco , Johnson EPDM/SIC/CAR-35mm/50mm
Brand: YUEMI
SKU: W011
Price: 125.00 USD
Availability: InStock

All Products

Water Pump Mechanical Seal
(272)

Grundfos Pump Mechanical Seal
(26)

Flygt Mechanical Seal
(26)

Ebara Mechanical Seal
(8)

Lowara Mechanical Seal
(5)

APV Pump Mechanical Seal
(10)

Wilo Pump Mechanical Seal
(5)

CNP Mechanical Seal
(24)

Medium Mechanical Seal
(19)

Rotor Pump Mechanical Seal
(10)

AFL Mechanical Seal
(7)

Printing Dyeing Equipment Mechanical Seal
(2)

Best Products

OEM/ODM 58U/59U Pump John Crane Seal Sewage Pumps Reactors Chemical Pumps Single Face Mechanical Seal

Certification

Customer Reviews

The product is exquisitely crafted and the logistics time is fast. The customer service attitude is worth praising. We will continue to purchase if needed next time.

—— Zongla Weimeng

This was a very pleasant collaboration, and the seller has strong product expertise. The delivery time is very fast. A company worth recommending.

—— Alexander Kovich

The merchant responded very enthusiastically and quickly. My device was leaking and could not function properly. Please take a picture of the product and send it to customer service, who will immediately help me accurately determine the product model.

—— Williams

A mechanical seal company that frequently cooperates with, and the company has a complete range of goods. The quality can completely replace the original seal, and the price is not high. The service attitude is very good. Worth recommending

—— selma neves

I'm Online Chat Now

Wave Spring Seal W01u For Alfa , Inoxpa , Jabsco , Johnson EPDM/SIC/CAR-35mm/50mm

Large Image : Wave Spring Seal W01u For Alfa , Inoxpa , Jabsco , Johnson EPDM/SIC/CAR-35mm/50mm

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	YUE MI
Certification:	ISO SGS
Model Number:	W011

Payment & Shipping Terms:

Minimum Order Quantity:	10/PCS
Price:	consult
Packaging Details:	Details Carton
Delivery Time:	5-8 word days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100/Set/Month

Contact Now

Wave Spring Seal W01u For Alfa , Inoxpa , Jabsco , Johnson EPDM/SIC/CAR-35mm/50mm

Description

Package:	Standard Export Package	Replacement To:	Alfa
Leadtime:	In Stock	Spring Material:	Stainless Steel,
Key Word:	Mechanical Seal	Warranty:	Water Pump Bearing
Dimensions:	Depend Your Model	Standard Or Nonstandard:	Standard Seal
Highlight:	Alfa Wave Spring Seal W01u , Wave Spring Seal W01u , Jabsco Wave Spring Seal W01u

Temperature	-20ºC to 200ºC, dependent on the elastomer
Pressure	Up to 25 bar
Speed	Up to 20 m/s
Sizes	20,30,35,45,55,75MM
Face	Carbon, SiC, TC
Seat	SiC, TC
O-rings	NBR, EPDM, VITON, Aflas, Kalrez, Chemraz etc.
Spring	SS304, SS316
Metal parts	SS304, SS316

Operational Conditions

Temperature:-40ºC to +200ºC
Pressure: ≤0.8MPa
Speed: ≤18m/s

Applications

Clean water,
sewage water
oil and other moderately corrosive fluids

Materials

Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, SUS304, SUS316, TC
Secondary Seal: NBR, EPDM, FKM
Spring and Metal Parts: SUS304, SUS316

W011--Wave sprung grub screwed 'Thin Cross Section' short working length mechanical seal.

Available in Food Grade materials as standard

Alternative to:

- Crane 80 (DF/ FP) seal
- Flowserve 168 seal
- Latty T510
- Roplan 800/ 850 seal
- Roten 7K seal
- Sterling 280 seal
