Product Details:
|
| Features: | Self-aligning, Balanced, Easy To Install | Extra Service: | OEM Is Welcome |
|---|---|---|---|
| Seal Design: | Balanced, Standard | Stainless Steel Material: | SS304.SS316 |
| Compatibility: | GLF Pumps | Support: | OEM/ODM |

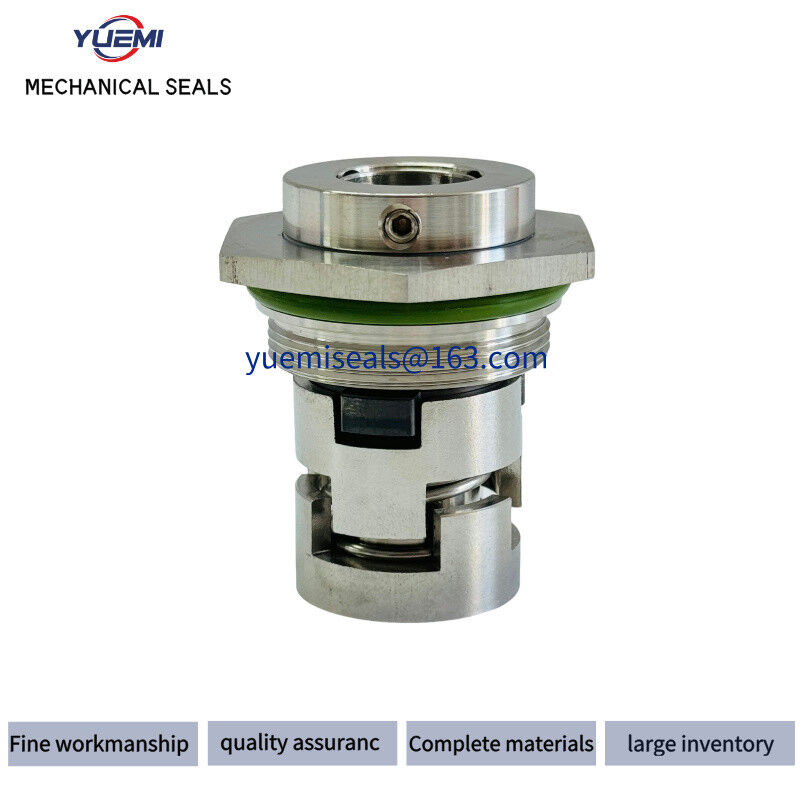

| Product: | Customizable OEM Water Pump Seal | Shaft Diameter: | 18 Mm |
| Face: | VIT CER/CAR | Spring: | Stainless Steel |
| Highlight: | Cr Crn Grundfos Pump Mechanical Seal,Hqqe Hqqv Grundfos Pump Mechanical Seal,18mm Grundfos Pump Mechanical Seal |
||
Product Descripition
Basic Information
| Model NO. | GLF-18 |
| Performance | High Pressure |
| Balance | Balanced |
| Stationary Ring | According customer's requiriements |
| Transport Package | Carton Box |
| Trademark | YUEMI |
| HS Code | 8484200090 |
| Production Capacity | 50000Pcs/Year |
| Standard | Standard |
| Temperature Range | 40~120 (NBR)/-20~250 (FKM) |
| Speed Range | up to 10M/S |
| Rotary Ring Face | SIC |
| Springs | SS304/SS316 |
| Specification | Diameter 12MM 16MM 22MM |
| Payment Method | T/T, Western Union |
| Origin | China |
Product Description
Working Conditions:
Mediums: Water, oil, weak acids, weak bases
and other general corrosive chemical media.
Temperature: 40~120 (NBR)/-20~250 (FKM)
Pressure: ≤ 1.4 Mpa
Rotate speed: ≤10m/s
Materials:
Stationary Ring : Ceramic / Sic / TC
Rotary Ring : Carbon / Sic / TC /SUS304
Secondary Seal : NBR / EPDM
Spring and Metal Part: Stainless Steel
| Grundfos CR, CRN32, CRN45, CRN64, CRN90 Series Pump Seals | |
| Replacement:Replace Grundfos E type Material : Sic/Sic/V and TC/TC/V |
Operating Limits Temperature: - 30ºC~+200ºC Pressure: ≤2.5Mpa Speeds:≤25m/s |
| Application: seals are primarily used in in Clean water,sewage water,oil and other moderately corrosive fluids etc.It is ideal with high or pulsing counterpressure or with viscous or sticky fluids. | |
| GLF-12, CR-12 Mechanical Seals for CR1/CR3/CR5 Vertical Multi-stage Pumps|Shaft 12mm Cartridge Seals (HQQV/HQQE/CR/CRI/CRN12),CR-12 for 96455082, 96455086, 96455083, 96455087 and 96455085, Pump models CR, CR8, CRI, CRN1, CRN3, CRN5, CRNE1, CRNE3-23HS; GLF-16, CR-16 Mechanical Seals for CR10/CR15/CR20 Multi-stage Pumps Shaft Size 16mm Cartridge Seals (HQQV/HQQE/CR/CRI/CRN16),CR-16 for 96511836, 96511840, 96511837, 96511845 and 96511841, pump models CR, CRI, CRN10, CRN15 and CRN20; GLF-22, CR-22 Mechanical Seals for CR32/CR45/CR64/CR90 Multi-stage Pumps Shaft 22mm Cartridge Seals (HQQV/HQQE/CR/CRI/CRN22),CR-22 for 96416584, 96433365, 96525459, 96525490, 96436728, pump models CR, CRN32, CRN45, CRN64 and CRN90. |
|
FAQ
F: Can you provide free samples
A: We do not provide free samples for the first time, but we can deduct the sample amount from future bulk orders
F: What is your delivery time
A: For products that are in stock, we can ship them out within 48 hours. For products that are out of stock or in large quantities, we need to communicate separately
F: What services can you provide
A: We provide OEM service
F: What are your payment terms
A: For most of the inventory products, we need to pay 100% in full; For products that require large-scale production or customization, we require a 50% advance payment. After confirming the accuracy of the product, the remaining 50% will be paid in full before shipment
