Product Details:
|
| Sample: | Ok | Export Area: | All Over The World |
|---|---|---|---|
| Keywords: | Pump Seal | Elatomer: | NBR, EPDM, Viton, FEP Etc |
| Oem: | Supper | Country Of Origin: | China |
| Usage: | Balance | Stainless Steel Material: | SS304.SS316 |
| Item: | CHM | ||
| Highlight: | Centrifugal Pump Mechanical Seal,l Multi Stage Centrifugal Pump Mechanical Seal |
||
|
|
We have all pump mechanical seals in South China Pump Industry |
|
|
|
|
|
Pump model |
Seal model |
Seal model |
Seal model |
Seal model |
Seal model |
|
CDL CDLF CDM CDMF |
CDLA-12 |
CDLA-16 |
CDLA-22 |
CDLA-32 |
CDLA-36 |
|
CDLK CDLKF |
CDL-12 |
CDL-16 |
|
|
|
|
CHL CHLF CHM |
CHL-16 |
CHL-20 |
CHM-14 |
CHM-19 |
|
|
MS |
MS-14 |
|
|
|
|
|
ZS |
ZS-24 |
ZS-32 |
|
|
|
|
TD |
TD-28 |
TD-32 |
TD-40 |
TD5-40/43 |
TD5-48/55 |
|
QYL QYLB |
QY-15 |
QY-17 |
QY-20 |
|
|
|
NIS NISO NIF |
NISO-33 |
NISO-43 |
NISO-53 |
NISO-60 |
|
|
WQ |
WQ-17 |
WQ-20 |
WQ-25 |
WQ-30/35/40/45 |
WQ-50/60/70 |
|
CDLS CDLH |
CDLC-12 |
CDLC-16 |
CDLC-22 |
|
|
|
SZ |
SZ-30 |
SZ-35 |
SZ-40 |
SZ-45/50 |
SZ-55/60 |
|
SP |
SP1-1/2 |
SP1-7/8 |
|
|
|
|

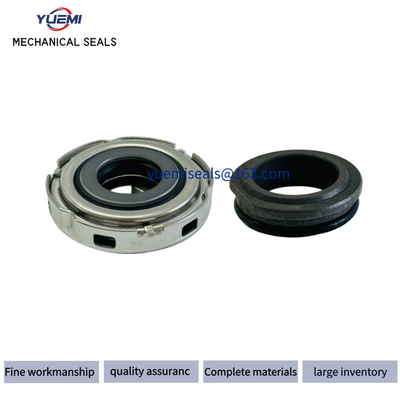

china supplier GLF mechanical seal for pump CM1-3 A-R-I-E-AQQE
|
||
|
Operational Condtions
|
Size
|
Material
|
|
Temperature:
-40ºC to220ºC, depend on o-ring material
|
14mm,19mm
|
Face: Carbon, SiC, TC
|
|
Pressure: Up to25 bar
|
Seat: SiC, TC
|
|
|
Speed:Up to 25 m/s
|
O-rings: NBR, EPDM, VIT, Aflas, FEP, Kalrez, Chemraz etc.
|
|
|
End Play /axial float Allowance:±1.0mm
|
Metal parts: SS316, hastelloy C, AM350FAQ
|
|
