Product Details:
|
| Features: | High Temperature Resistance, Corrosion Resistance, Easy Installation | Working Medium: | Water, Oil And Weakly-corrosive Mediums |
|---|---|---|---|
| Code: | 485114 | Use To: | For Grundfos Mechanical Seal |
| Compatibility: | GLF Pumps | Seal Faces: | Car/SIC |
| Stainless Steel Materia: | SS304.SS316 | Model No: | ITT |
| Highlight: | ITT Water Pump Mechanical Shaft Seal,22mm Water Pump Mechanical Shaft Seal,Glf Water Pump Mechanical Shaft Seal |
||

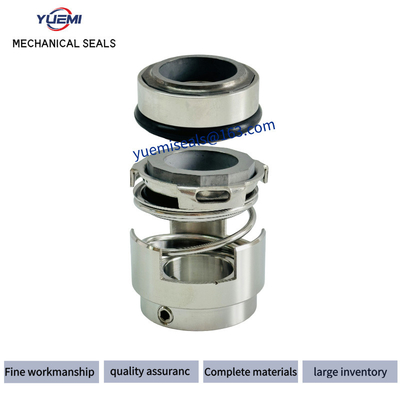

Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components are held togther by a snap ring in a unized construction design and can be repaired easily on-site.
High Quality Multiple Spring O-ring Mechanical Seals
Description:
Replacement to:
Suitable for CR, CRN, and CRI series Pumps
1. Operational Conditions:
Temperature: -20ºC to +180ºC
Pressure: ≤2.5MPa
Speed: ≤15m/s
2. Materials:
Stationary Ring: Ceramic, Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide
Secondary Seal: NBR, EPDM, Viton, PTFE
Spring and Metal Parts: Steel
3. Seat Type:
4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids
| Operational Conditions: | |
| Temperature: | -20ºCto+180ºC |
| Pressure: | ≤2.5MPa |
| Speed: | ≤15m/s |
| Materials: | |
| Stationary Ring: | V1,Q1,Q2,U2 |
| Rotary Ring: | B,A,Q1,Q2 |
| Secondary Seal: | P,E,V,M1,M2 |
| Spring and Metal Parts: | F,G,M |
| Seat Types: | |
| Standard Size: | 12mm,16mm,22mm |
| Alternative: | |
| Applications: |
Clean water, sewage water, Oil and other moderately corrosive fluids |
Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components are held togther by a snap ring in a unized construction design and can be repaired easily on-site.
High Quality Multiple Spring O-ring Mechanical Seals
Description:
Replacement to:
Suitable for CR, CRN, and CRI series Pumps
1. Operational Conditions:
Temperature: -20ºC to +180ºC
Pressure: ≤2.5MPa
Speed: ≤15m/s
2. Materials:
Stationary Ring: Ceramic, Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide
Secondary Seal: NBR, EPDM, Viton, PTFE
Spring and Metal Parts: Steel
3. Seat Type:
4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids
| Operational Conditions: | |
| Temperature: | -20ºCto+180ºC |
| Pressure: | ≤2.5MPa |
| Speed: | ≤15m/s |
| Materials: | |
| Stationary Ring: | V1,Q1,Q2,U2 |
| Rotary Ring: | B,A,Q1,Q2 |
| Secondary Seal: | P,E,V,M1,M2 |
| Spring and Metal Parts: | F,G,M |
| Seat Types: | |
| Standard Size: | 12mm,16mm,22mm |
| Alternative: | |
| Applications: |
Clean water, sewage water, Oil and other moderately corrosive fluids |
