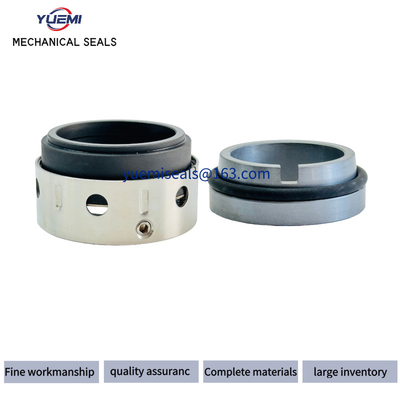

Product Details:
|
| Shaft Diameter: | 14-100mm | Stainless Steel Material: | SS304.SS316 |
|---|---|---|---|
| Application: | Water Pumps | Service: | OEM ODM |
| Temperature: | -20℃ To +200℃ | Working Medium: | Water, Oil And Weakly-corrosive Mediums |
| Model No: | 58B | Rotary Ring: | Carbon/SiC/TC |
| Seal: | Submersible Pump Seal | Pump: | Pump Seal |
| Stationary Ring: | Ceramic/SiC/TC | ||
| Highlight: | Chemical Pumps Mechanical Face Seal,58B/59B Mechanical Face Seal,John Crane Safematic Mechanical Face Seal |
||
| Seal size d(mm) d2 |
d2 | d3 | d4 | l1k | l2 | l3 | d6 | d7 |
| 14 16 18 20 22 24 25 28 30 32 33 35 38 40 43 45 48 50 53 55 58 60 63 65 70 75 80 85 90 95 100 |
18 20 22 24 26 28 30 33 35 38 38 40 43 45 48 50 53 55 58 60 63 65 68 70 75 80 85 90 95 100 105 |
32 34 36 38 40 42 44 47 49 54 54 56 59 61 64 66 69 71 78 80 83 85 88 90 95 104 109 114 119 124 129 |
34 36 38 40 42 44 46 49 51 58 58 60 63 65 68 70 73 75 83 85 88 90 93 95 104 109 114 119 124 129 134 |
42.5 42.5 45.0 45.0 45.0 47.5 47.5 50.0 50.0 50.0 50.0 50.0 52.5 52.5 52.5 52.5 52.5 57.5 57.5 57.5 62.5 62.5 62.5 62.5 70.0 70.0 70.0 75.0 75.0 75.0 75.0 |
18 18 20 20 20 20 20 20 20 20 20 20 23 23 23 23 25 25 25 25 25 25 25 25 28 28 28 28 28 28 28 |
30.5 30.5 31.5 31.5 31.5 34.2 34.5 37.5 38.0 38.0 38.0 38.0 39.5 39.5 39.5 39.5 39.5 44.0 44.0 44.0 49.0 49.0 49.0 49.0 55.5 55.5 55.0 60.0 60.0 60.0 60.0 |
21 23 27 29 31 33 34 37 39 42 42 44 49 51 54 56 59 62 65 67 70 72 75 77 83 88 95 100 105 110 115 |
25 27 33 35 37 39 40 43 45 48 48 50 56 58 61 63 66 70 73 75 78 80 83 85 92 97 105 110 115 120 125 |
