Product Details:
|
| Standard Or Nonstand: | Standard | Oem: | Supper |
|---|---|---|---|
| Temperature: | Up To 200°C | Face: | VIT SIC SIC |
| Usage: | K-SB Pump | Pump: | Grundfos Pump |
| Product: | Customizable OEM | Trademark: | YUEMI Seal |
| Key Word: | K-SB Mechanical Seal | Bore Size: | 28mm38m48mmm |
| Highlight: | Vulcan 192K Mechanical Seal,Elastomer Bellow Mechanical Seal,AES K-SB2 Mechanical Seal |
||

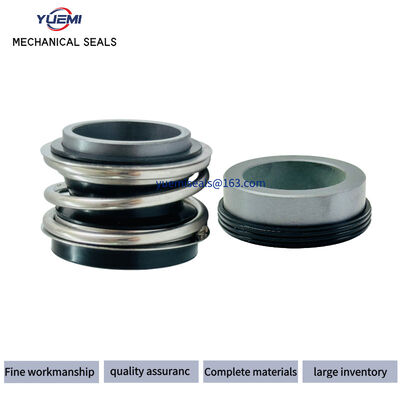

| Vulcan K-SB2 Mechanical Seal For Pump Model Etabloc BN 100-160 | |
| Operating pressure :Up to 25 bar dynamic Up to 37.5 bar static Temperature : -30 °C to 140 °C |
Stationary faces :Carbon, Ceramic, Silicon carbide, Tungsten carbide, Rotary faces: Carbon, Ceramic, Silicon carbide, Tungsten carbide, Elastomers :Aflas, EPDM, FEP Viton/Silicone, Kalrez, Nitrile, PTFE, Silicone, Viton, QK, HNBR, CR |
Working Conditions
Mediums: Petroleum products,chemical solvents,medium and weak corrsive acids, etc.
Temperature: -20ºC~+120 ºC
Pressure: ≤ 1.2 MPa
Speed: ≤ 10 m/s
Combined Materials
Rotary Ring : Carbon / SiC / TC
Stationary Ring : 99% Ceramic / SiC/ TC
Secondary Seal : EPDM / VITON / NBR
Spring and Metal Parts: SUS304 / SUS316
| Size d(mm) | D3 | D1 | L1 | L2 |
| 192K-16 | 26.0 | 27.0 | 22.2 | 8.6 |
| 192K-22 | 36.0 | 37.0 | 25.5 | 12.1 |
| 192K-28 | 47.0 | 43.0 | 36.4 | 14.4 |
| 192K-38 | 58.0 | 56.0 | 42.0 | 13.2 |
| 192K-48 | 69.0 | 66.0 | 50.5 | 9.6 |
