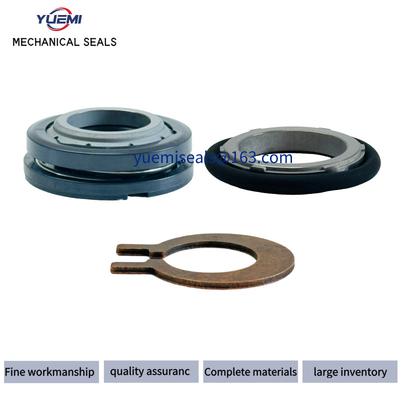

Flygt Pump Seal AES T05m Flygt 3126-181/3127/4440/5530 Repair Seals FS-JL-JU

Flygt Pump Seal AES T05m Flygt 3126-181/3127/4440/5530 Repair Seals FS-JL-JU
Flygt Pump Seal AES T05m Flygt 3126-181/3127/4440/5530 Repair Seals FS-JL-JU Flygt Pump Seal AES T05m Flygt 3126-181/3127/4440/5530 Repair Seals FS-JL-JU Flygt Pump Seal AES T05m Flygt 3126-181/3127/4440/5530 Repair Seals FS-JL-JU Flygt Pump Seal AES T05m Flygt 3126-181/3127/4440/5530 Repair Seals FS-JL-JU

Large Image :  Flygt Pump Seal AES T05m Flygt 3126-181/3127/4440/5530 Repair Seals FS-JL-JU

Product Details:
Place of Origin: Guangzhou, China
Brand Name: YUE MI
Certification: ISO SGS
Model Number: FS-JL-35mm
Payment & Shipping Terms:
Minimum Order Quantity: 5/PCS
Price: consult
Packaging Details: Details Carton
Delivery Time: 5-8 word days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/Set/Month
Contact Now

Flygt Pump Seal AES T05m Flygt 3126-181/3127/4440/5530 Repair Seals FS-JL-JU

Description
Service: OEM Service Transport Package: YUEMI Standard Or Customised
Seal Face: Carbon Vs Ceramic Replacement: AES T05m
Processing: Drawing Basis Rotary Ring: Carbon, Silicon Carbide, Tc
Traemark: YUEMI Specification: 35mm
Origin: CHINA Dimensions: Depend Your Model
Highlight:

Flygt Pump Seal AES T05m

,

FS-JL-JU Pump Seal

,

Flygt 3126-181 Pump Seal

DETAILS

For Flygt pump 3102
Shaft Size 25mm
Material TC/TC/VIT



Performance Capabilities:

Temperature
-30ºC to 200ºC, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
35MM
Brand
YUEMI
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.





Operational Conditions:

  1. Cartridge Mechanical Seal in Tungsten carbide/Tungsten carbide/Viton-Tungsten carbide/Tungsten carbide/Viton
  2. To Suit Grindex Drainage Range Dewatering Pumps. Models: Minex, Minette, Minor, Major. Or Grindex Sludge Pump Range.
  3. Models: Salvador, Senior, Sandy.
  4. Temperature: -20ºC to +180ºC
  5. Pressure: ≤2.5MPa
  6. Speed: ≤15m/s
Materials:
  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, Viton, PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids



Material TC TC SS304 Manufacturer Excellent Quality Excellent Workmanship Industry Leading Bulk Spot

Model NO.
Xa-35
Type
Plugin Seal
Balance
Standard
Flygt Pump 2610, 2620, 2630,2640, 4610
Xe-20
Flygt Pump Seal 4630 and 4640
Xe-25
Flygt 2670, 3153, 5100,
Xe-35
Flygt Pump 3202, 4670, 4680, 5100, 5150
Xe-60
Flygt Pump 3301, 5150
Xe-90
Xylem Seal
Flygt Seal
Itt Seal
Flygt Pump Seal
Wastewater Pump Seal
Trisun Seal
Xylem Pump Seal
Dewatering Pump Seal
Mixer Seal
Plug-in Seal
Trademark
YUEMI
Transport Package
Neutral Packing or Customized Packing
Specification
all sizes
Origin
China
HS Code
8484200090

Tag:

mechanical face seals,

centrifugal pump mechanical seal,

mechanical seal pump
