Product Details:
|
| Equivalent: | Security Rubber Seal | Extra Service: | OEM Is Welcome |
|---|---|---|---|
| Trademark: | Mechanical Seal | Item: | T1-SIC SIC |
| Product Type: | John Crane Mechanical Seal | Sample: | Can Provide |
| Type: | T1-SIC/SIC | ||
| Highlight: | P05u Single-Spring Seal,Water Pump P05u Single-Spring Seal,Single Spring Seal for Water Pump |
||

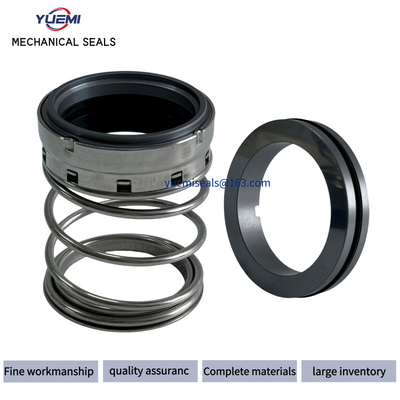

T1 Single-Spring Mechanical Seal Replace AESSEAL (replace AESSEAL P05U and CRANE 1
Dimensions: 3.5inch, 2.5 inch, 1.875 inch and 1.5 inch
Material: Tungsten Carbide VS Tungsten Carbide, Viton, SS316 machining parts
Type 1 seals, same as NOV #22451-1, fit the following pumps too:
MISSION MAGNUM 1 and XL MUD PUMPS
NOV HALCO 2500 SUPREME MUD PUMPS
SPD 2.5″ MUD HOG CENTRIFUGAL PUMPS
Operating Limits:
Pressure: ≤2.8MPa
Speed: ≤13 m/s
Temperature: -30ºC~+200ºC
Rotary Ring(Carbon/Sic/tc)
Stationary Ring(Ceramic/Sic/Tc/SUS304)
Secondary Ring(nbr/Epdm/VITON)
Spring & Other Parts(Sus304/Sus316)
| Temperature: | -30~200ºC |
| Speed: | ≤15m/s |
| Pressure: | ≤28bar |
| Standard size: | 14-100mm or 0.375"-4.0" |
| Model | d1(inches) | d3 | d7 | l1 | l3 |
| T1-1 " | 25.4 | 38.1 | 41.275 | 50.77 | 11.1 |
| T1-1 1/8" | 28.575 | 41.5 | 44.45 | 52.4 | 11.1 |
| T1-1 1/4" | 31.75 | 46 | 47.625 | 52.4 | 11.1 |
| T1-1 3/8" | 34.925 | 47.6 | 50.8 | 53.9 | 11.1 |
| T1-1 7/16" | 36.5 | 50.8 | 53.975 | 53.9 | 11.1 |
| T1-1 1/2" | 38.1 | 50.8 | 53.975 | 53.9 | 11.1 |
| T1-1 5/8" | 41.275 | 57.2 | 60.325 | 63.5 | 12.7 |
| T1-1 3/4" | 44.45 | 60.5 | 63.5 | 63.5 | 12.7 |
| T1-1 7/8" | 47.625 | 63.5 | 66.675 | 66.7 | 12.7 |
| T1-2" | 50.8 | 66.7 | 69.85 | 66.7 | 12.7 |
| T1-2 1/8" | 53.975 | 71.4 | 76.2 | 74.6 | 14.3 |
| T1-2 1/4" | 57.15 | 74.6 | 79.375 | 74.6 | 14.3 |
| T1-2 3/8" | 60.325 | 77.8 | 82.55 | 77.8 | 14.3 |
| T1-2 1/2" | 63.5 | 81 | 85.725 | 77.8 | 14.3 |
| T1-2 5/8" | 66.675 | 85.7 | 85.725 | 85.75 | 15.9 |
| T1-2 3/4" | 69.85 | 88.9 | 88.9 | 85.75 | 15.9 |
| T1-2 7/8" | 73.025 | 92 | 95.25 | 88.9 | 15.9 |
| T1-3" | 76.2 | 95.2 | 98.425 | 88.9 | 15.9 |
| T1-3 1/2" | 88.9 | 111.1 | 111.1 | 99.18 | 19.8 |
