Type 156 Domestic Water Pump Mechanical Seal For Water Pump Single Spring Elastomer Mechanical Seal With O-Ring

Type 156 Domestic Water Pump Mechanical Seal For Water Pump Single Spring Elastomer Mechanical Seal With O-Ring
Type 156 Domestic Water Pump Mechanical Seal For Water Pump Single Spring Elastomer Mechanical Seal With O-Ring Type 156 Domestic Water Pump Mechanical Seal For Water Pump Single Spring Elastomer Mechanical Seal With O-Ring Type 156 Domestic Water Pump Mechanical Seal For Water Pump Single Spring Elastomer Mechanical Seal With O-Ring Type 156 Domestic Water Pump Mechanical Seal For Water Pump Single Spring Elastomer Mechanical Seal With O-Ring Type 156 Domestic Water Pump Mechanical Seal For Water Pump Single Spring Elastomer Mechanical Seal With O-Ring

Large Image :  Type 156 Domestic Water Pump Mechanical Seal For Water Pump Single Spring Elastomer Mechanical Seal With O-Ring

Product Details:
Place of Origin: Guangzhou, China
Brand Name: YUE MI
Certification: ISO SGS
Model Number: 156
Payment & Shipping Terms:
Minimum Order Quantity: 1/PCS
Price: consult
Packaging Details: Details Carton
Delivery Time: 5-8 word days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100/Set/Month
Contact Now

Type 156 Domestic Water Pump Mechanical Seal For Water Pump Single Spring Elastomer Mechanical Seal With O-Ring

Description
Secondary Seal: NBR, EPDM, Vit Materail: CAR SIC TC PTFE
Application: Water Pumps, Centrifugal Pumps, Submersible Pumps Fluid Compatibility: Water, Oil, Mild Chemicals
Spring: Stainless Steel Spring Material: Stainless Steel
Material: Carbon, Ceramic, Stainless Steel Keywords: Water Pump Seal
Performance: Corrosion Riverside Pump Seal: YM Pump Seal
Highlight:

O-Ring Water Pump Mechanical Seal

,

Single Spring Water Pump Mechanical Seal

,

Elastomer Water Pump Mechanical Seal

Product Description


Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components are held togther by a snap ring in a unized construction design and can be repaired easily on-site.

High Quality Mechanical Seals
156 mechanical seal

Temperature
-30ºC to 200ºC, dependent on the elastomer
Pressure
Up to 5 bar
Speed
Up to 10 m/s
End play/axial float allowance
±0.1mm
Size
8mm to 50mm
Brand
YM
Face
Ceramic, SIC, TC
Seat
Carbon, SIC, TC
Elastomer
NBR, EPDM, VITON
Spring
SS304, SS316
Metal parts
SS304, SS316



Operating Limits:

Pressure: ≤0.5MPa
Speed: ≤10m/s
Temperature: -30ºC~+200ºC

Rotary Ring(Plastic Carbon/Carbon/Sic/TC)
Stationary Ring(Ceramic/Sic/Tc)
Secondary Seal(nbr/Epdm/VITON)
Spring & Other Parts(Sus304/Sus316)
Ts 156 Single-Spring Mechanical Seal Replace Aesseal (replace EAGLE EA100)

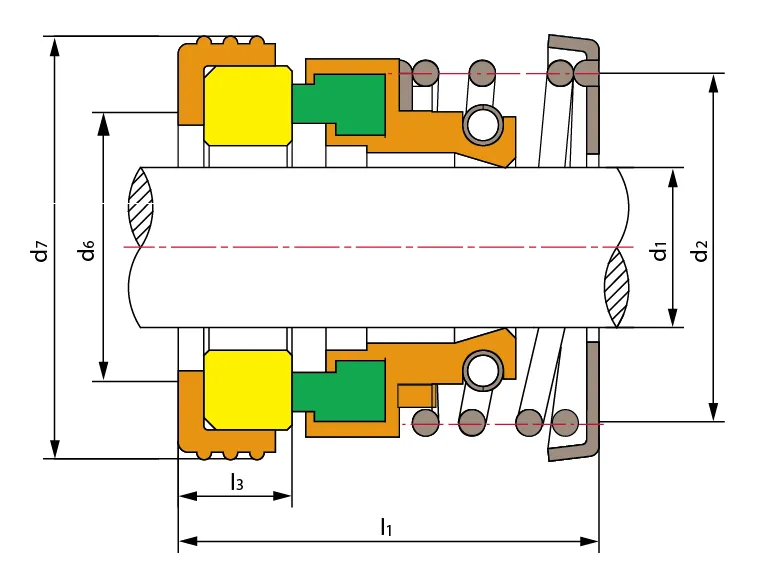

Model d1 (mm) d2 d6 d7 l1 l3
156-8 8 16 13 18/21 18 5/6
156-9 9 18 16 21 23 6
156-10 10 20 16 20/22/24 23 6.5
156-11 11 20 16 24 23 7
156-12 12 22.5 17 26 24 7
156-13 13 22.5 17 26 24 7
156-14 14 24.5 21 28/30 25 7
156-15 15 24.5 21 28/30 25 7
156-16 16 28.5 22 32 27 8
156-17 17 28.5 22 32 27 8
156-18 18 31.5 25 35 29 8
156-19 19 31.5 25 35 29 8
Model d1 (mm) d2 d6 d7 l1 l3
156-20 20 31.5 27 38 31 8
156-22 22 34.5 29 40 32 8
156-25 25 37.5 32 44 33 9
156-28 28 40.5 34 46 34 9
156-30 30 44.5 38 50 35 9
156-32 32 47.5 40 54 37 9
156-35 35 50.5 44 58 40 10
156-38 38 55 46 60 42 10
156-40 40 56.5 48 64 43 10
156-45 45 61.5 52 66 45 10
156-50 50 66.5 58 72 47 10









Tag:

mechanical face seals,

centrifugal pump mechanical seal,

mechanical seal pump
