MB2 Water Ring Vacuum Pump Wilo Pipeline Hot Water Pump Mechanical Seal

MB2 Water Ring Vacuum Pump Wilo Pipeline Hot Water Pump Mechanical Seal
MB2 Water Ring Vacuum Pump Wilo Pipeline Hot Water Pump Mechanical Seal MB2 Water Ring Vacuum Pump Wilo Pipeline Hot Water Pump Mechanical Seal MB2 Water Ring Vacuum Pump Wilo Pipeline Hot Water Pump Mechanical Seal

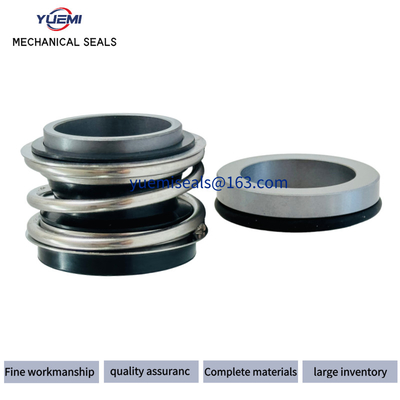

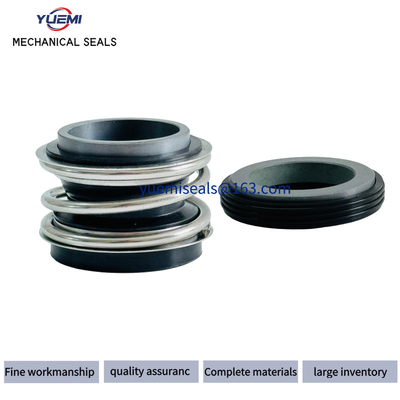

Large Image :  MB2 Water Ring Vacuum Pump Wilo Pipeline Hot Water Pump Mechanical Seal

Product Details:
Place of Origin: Guangzhou, China
Brand Name: YUE MI
Certification: ISO SGS
Model Number: MB2
Payment & Shipping Terms:
Minimum Order Quantity: 1/PCS
Price: consult
Packaging Details: Details Carton
Delivery Time: 5-8 word days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100/Set/Month
Contact Now

MB2 Water Ring Vacuum Pump Wilo Pipeline Hot Water Pump Mechanical Seal

Description
Seal: Submersible Pump Seal Application: Water Pump
Seal Type: MB2 Seal For: WILO Pump
Seal Face: SS304/SS316/Sic/Tc Traemark: YUEMI
Feature: Durable Sample: Avaliable
Number Of Row: Double Row
Highlight:

pipeline hot water pump mechanical seal

,

Hot Water Pump Mechanical Seal

Working Conditions
Mediums: All types of rotating equipment,such us centrifugal
pumps.agitators,for most general and light chemical duties ,
wherever an elastomer Secondary Seal can be used .
Temperature: -30ºC~200ºC
Pressure: ≤1.2MPa
Speed: ≤12m/Sec

Combined Materials
Stationary Ring (Ceramic / Sic / TC)
Rotary Ring (Carbon / Sic / TC)
Secondary Seal (NBR / EPDM / Viton)
Spring and Punched Parts ( Steel )


Product Parameters

D1(mm) Size Code D3 D7 L4 L1 L11 L12
10 0100 24.00 21.00 6.60 14.50 25.90 33.40
12 0120 24.00 23.00 6.60 15.00 25.90 33.40
14 0140 28.00 25.00 6.60 17.00 28.40 33.40
15 0150 28.00 27.00 6.60 17.00 28.40 33.40
16 0160 28.00 27.00 6.60 17.00 28.40 33.40
18 0180 31.00 33.00 7.50 19.50 30.00 37.50
20 0200 36.00 35.00 7.50 21.50 30.00 37.50
22 0220 36.00 37.00 7.50 21.50 30.00 37.50
24 0240 40.50 39.00 7.50 22.50 32.50 42.50
25 0250 41.00 40.00 7.50 23.00 32.50 42.50
28 0280 47.00 43.00 7.50 26.50 35.00 42.50
30 0300 47.00 45.00 7.50 26.50 35.00 42.50
32 0320 51.00 48.00 7.50 27.50 35.00 47.50
33 0330 51.00 48.00 7.50 27.50 35.00 47.50
35 0350 55.00 50.00 7.50 28.50 35.00 47.50
38 0380 58.00 56.00 9.00 30.00 36.00 46.00
40 0400 60.00 58.00 9.00 30.00 36.00 46.00
43 0430 63.30 61.00 9.00 30.00 36.00 51.00
45 0450 65.00 63.00 9.00 30.00 36.00 51.00
48 0480 69.00 66.00 9.00 30.50 36.00 51.00
50 0500 71.00 70.00 9.50 30.50 38.00 50.50
53 0530 76.00 73.00 11.00 33.00 36.50 59.00
55 0550 78.00 75.00 11.00 35.00 36.50 59.00
58 0580 82.00 78.00 11.00 37.00 41.50 59.00
60 0600 85.00 80.00 11.00 38.00 41.50 59.00
65 0650 90.00 85.00 11.00 40.00 41.50 69.00
68 0680 94.00 90.00 11.30 40.00 48.70 68.70
70 0700 97.00 92.00 11.30 40.00 48.70 68.70
75 0750 102.00 97.00 11.30 40.00 48.00 68.70
80 0800 108.00 105.00 12.00 40.00 48.00 78.00
85 0850 117.00 110.00 14.00 41.00 46.00 76.00
90 0900 126.00 115.00 14.00 45.00 51.00 76.00
95 0950 131.00 120.00 14.00 46.00 51.00 76.00
100 1000 136.00 125.00 14.00 47.00 51.00 76.00


Our Advantages

We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Guangzhou City, GuangDong Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
