560DE Mechanical Seal For Ebara Pump Sewage Pump Ebara Submersible Pump Seal Double Mechanical Seal

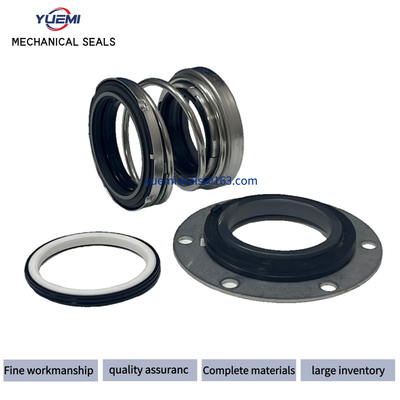

Large Image : 560DE Mechanical Seal For Ebara Pump Sewage Pump Ebara Submersible Pump Seal Double Mechanical Seal

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	YUE MI
Certification:	ISO SGS
Model Number:	560DE

Payment & Shipping Terms:

Minimum Order Quantity:	1/PCS
Price:	consult
Packaging Details:	Details Carton
Delivery Time:	5-8 word days
Supply Ability:	100/Set/Month

Contact Now

560DE Mechanical Seal For Ebara Pump Sewage Pump Ebara Submersible Pump Seal Double Mechanical Seal

Description

Spring:	Stainless Steel	Item:	560DE
Seal Type:	Single Spring	Spring Type:	Single Or Multiple Springs
Structure:	Deep Groove	Balance:	Unbalanced
Style:	560DE Mechanical Seal
Highlight:	560DE Mechanical Seal , Ebara Submersible Pump Mechanical Seal , Ebara Pump Mechanical Seal

560DE Mechanical Seal for Ebara Pump Sewage and Submersible Pumps

Double mechanical seal designed specifically for Ebara submersible pumps in sewage and wastewater applications.

Available Sizes

14mm, 20mm, 25mm, 30mm, 40mm, 45mm - OEM replacement for Ebara and Yuemi pumps

Application Specifications

Type A (20mm, 25mm, 30mm, 35mm): For Ebara DS, DVS, DL, DL W/C submersible pumps

Type A (40mm and 45mm): For Ebara DL and DL W/C submersible pumps

Type EAN (30mm, 40mm and 45mm): For Ebara DML and DMLV submersible pumps with stepped shaft design

Compatible Applications

Double mechanical seal suitable for wastewater pumps and other major brands

Material Options

Seal faces available in: Silicon Carbide, Tungsten Carbide, Carbon, Ceramic

Elastomer options: NBR, EPDM, Viton

Technical Dimensions

Model	d1	d2	d3	d7	d8	d9	D1	D2	L	L1	L2	L3	h1	h2
YM560DE-30	30	35	47	50	63	73	48	53.7	60	48	8.5	5.5	16	12.5
YM560DE-40	40	45	57	60	73	83	62	63.7	68	48	8.5	5.5	18	12.5
YM560DE-45	45	50	62	67	80	90	66	69.4	78	50.5	10	5.5	17.5	12.5
