YUEMI 560d30/35 Double End Single-Spring Seal Balanced Mechanical Seal

YUEMI 560d30/35 Double End Single-Spring Seal Balanced Mechanical Seal
YUEMI 560d30/35 Double End Single-Spring Seal Balanced Mechanical Seal YUEMI 560d30/35 Double End Single-Spring Seal Balanced Mechanical Seal YUEMI 560d30/35 Double End Single-Spring Seal Balanced Mechanical Seal

Large Image :  YUEMI 560d30/35 Double End Single-Spring Seal Balanced Mechanical Seal

Product Details:
Place of Origin: Guangzhou, China
Brand Name: YUE MI
Certification: ISO SGS
Model Number: 560D-30/35
Payment & Shipping Terms:
Minimum Order Quantity: 1/PCS
Price: consult
Packaging Details: Details Carton
Delivery Time: 5-8 word days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100/Set/Month
Contact Now

YUEMI 560d30/35 Double End Single-Spring Seal Balanced Mechanical Seal

Description
Model: 560D-30/35 Seat: Ceramic, Sic, Tc
Face: VIT SIC SIC Usage: Balanced
Keywords: Pump Seal Metal Parts: SS304, SS316
Pump Seal: Double End Seal
Highlight:

YUEMI Balanced mechanical seal

,

560d30/35 Balanced mechanical seal

Product Description

Features
  • Dual seal
  • Good chemical resistance and ability to handle solids
  • In-house manufactured sliding parts

Advantages

The 560 is a dual seal in a back-to-back arrangement with an560 base. Therefore, the seal combines the advantages of the560 with the advantages of a dual seal.

Operating range

Shaft diameter:
d1 = 13 ... 50 mm (0.51" ... 1.96")
Pressure:
p1 = d ≤19 mm: 2 bar (29 PSI),
d ≥ 20 mm: 3 bar (44 PSI),
vacuum ... 0.1 bar (1.45 PSI)
Temperature:
t = -20 °C ... +70 °C (-4 °F ... 158 °F)
Sliding velocity: vg = 5 m/s (16 ft/s)
Axial movement: ±1.0 mm

Materials

Seal face: Carbon graphite resin impregnated (B), Silicon carbide (Q1, Q2)
Seat: Aluminium oxide (V), Silicon carbide (Q1, Q2)
Elastomer: NBR (P)
Metal parts: CrNi steel (F)

Recommended applications

  • Water and waste water technology
  • Chemical industry
  • Process industry
  • Water and waste water
  • Glycols
  • Oils
  • Industrial pumps/equipment
  • Submersible pumps
  • Engine pumps
  • Circulating pump

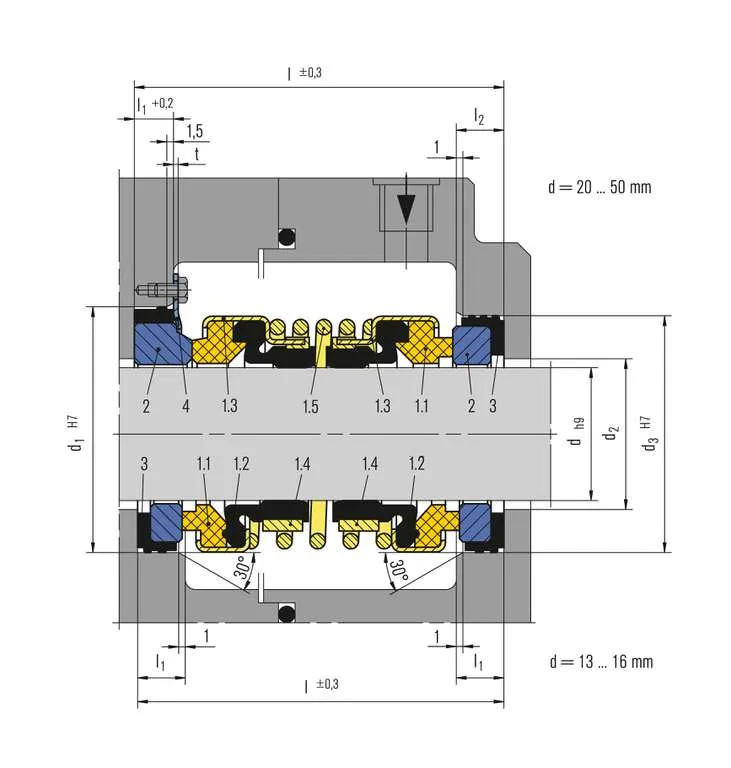

560d-30/ED560-30mm, 560d-30s/ ED560-30s Double Face Mechanical Seals Dual Seal (Material: CAR/CER/NBR+SIC/SIC/NBR)
ITEM DESCRIPTION
1.1 Seal face
1.2 Bellows
1.3 Spring collar
1.4 Drive collar
1.5 Spring
2 Seat
3 Corner sleeve
4 Washer



d d1 d2 d3 d4 d5 l l1 l2 l3
13 25 17 25 - - 36 5 - -
14 30 20 30 - - 36 5 - -
15 30 20 30 - - 36 5 - -
16 30 20 30 - - 36 5 - -
20 44 23 38 60 72 49 7 7 1.0
25 50 28 44 60 72 51 7 7 1.0
30 57 33 50 70 82 59 9 8 1.0
35 64 38 58 80 94 61 9 9 1.2
40 70 43 64 85 100 64.5 11 9 1.2
45 70 48 66 90 105 65 10 9 1.0
50 80 53 72 95 109 69.5 10 9 1.2
