Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components are held togther by a snap ring in a unized construction design and can be repaired easily on-site.

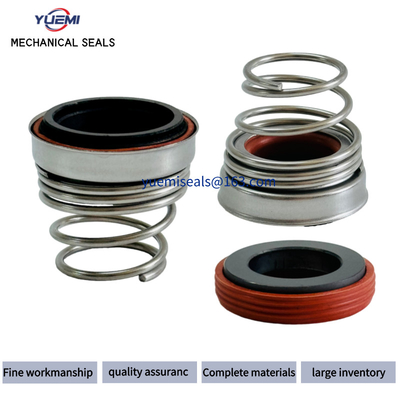

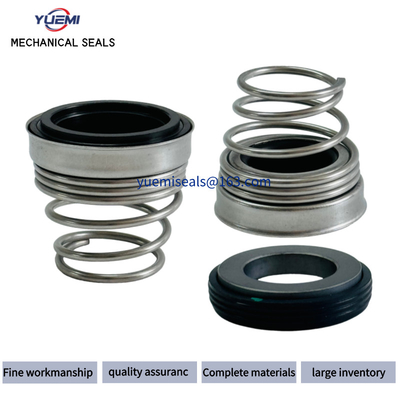

The BT-FN combines a spring loaded ceramic face with the tradition of the pusher mechanical seals, the competitive price and the wide range of application have made 155(BT-FN) a successful seal. recommended for submersible pumps. clean water pumps, pumps for domestic appliances and gardening.
High Quality Mechanical Seals
Description:
Replacement to:
BT-FN
For blower pump, diving pump and circulating pump
machanical seals
1. Operational Conditions:
Temperature: -20ºC to +150ºC
Pressure: ≤1.0MPa
Speed: ≤10m/s
2. Materials:
Stationary Ring: Carbon, Silicon Carbide
Rotary Ring: Ceramic, Silicon Carbide
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: Steel
3. Applications: Clean water, sewage water, oil and other moderately corrosive fluids
Parameter :
| 1 |
Temperature |
-20ºC~150ºC |
| 2 |
Pressure |
Less than1.0MPa |
| 3 |
Speed |
Less than10m/s |
| 4 |
Stationary Ring |
Ceramic/SiC/TC |
| 5 |
Rotary Ring |
Carbon/SiC/TC/SUS304 |
| 6 |
Secondary Seal |
NBR/EPDM/Viton |
| 7 |
Sping&Other Parts |
SUS304/SUS316L |
| MODEL |
D1 |
D3 |
D6 |
D7 |
L |
L3 |
L4 |
| 155-10 |
10 |
20.0 |
14.0 |
18.1 |
20.5 |
15 |
5.5 |
| 155-11 |
11 |
22.0 |
16.5 |
20.6 |
23.5 |
18 |
5.5 |
| 155-12 |
12 |
22.0 |
16.5 |
20.6 |
23.5 |
18 |
5.5 |
| 155-13 |
13 |
25.0 |
19.0 |
23.1 |
28.0 |
22 |
6.0 |
| 155-14 |
14 |
25.0 |
19.0 |
23.1 |
28.0 |
22 |
6.0 |
| 155-15 |
15 |
29.0 |
21.0 |
26.9 |
29.0 |
22 |
7.0 |
| 155-16 |
16 |
29.0 |
21.0 |
26.9 |
30.0 |
23 |
7.0 |
| 155-17 |
17 |
29.0 |
21.0 |
26.9 |
30.0 |
23 |
7.0 |
| 155-18 |
18 |
33.0 |
25.0 |
30.9 |
32.0 |
24 |
8.0 |
| 155-19 |
19 |
33.0 |
25.0 |
30.9 |
33.0 |
25 |
8.0 |
| 155-20 |
20 |
33.0 |
25.0 |
30.9 |
33.0 |
25 |
8.0 |
| 155-21 |
21 |
38.0 |
30.0 |
35.4 |
33.0 |
25 |
8.0 |
| 155-22 |
22 |
38.0 |
30.0 |
35.4 |
33.0 |
25 |
8.0 |
| 155-23 |
23 |
38.0 |
30.0 |
35.4 |
35.0 |
27 |
8.0 |
| 155-24 |
24 |
38.0 |
30.0 |
35.4 |
35.0 |
27 |
8.0 |
| 155-25 |
25 |
40.0 |
33.0 |
38.2 |
35.5 |
27 |
8.5 |
| 155-28 |
28 |
46.0 |
38.0 |
43.3 |
38.0 |
29 |
9.0 |
| 155-29 |
29 |
46.0 |
38.0 |
43.3 |
39.0 |
30 |
9.0 |
| 155-30 |
30 |
46.0 |
38.0 |
43.3 |
39.0 |
30 |
9.0 |
| 155-32 |
32 |
46.0 |
38.0 |
43.3 |
39.0 |
30 |
9.0 |
| 155-33 |
33 |
48.0 |
45.0 |
53.5 |
50.5 |
39 |
11.5 |
| 155-35 |
35 |
50.0 |
45.0 |
53.5 |
50.5 |
39 |
11.5 |
| 155-38 |
38 |
58.0 |
52.0 |
60.5 |
50.5 |
39 |
11.5 |
| 155-40 |
40 |
58.0 |
52.0 |
60.0 |
50.5 |
39 |
11.5 |
