Product Details:
|
| Features: | High Temperature Resistance, Corrosion Resistance, High Pressure Resistance | Item: | Hidrostal |
|---|---|---|---|
| Export Area: | All Over The World | Stationary Ring: | SIC/SIC,SIC/CER |
| For: | Sanitary Pump | Spring: | Stainless Steel |
| Function: | Hidrostal Pump | ||
| Highlight: | Rubber Bellows Seal,Kb Mechanical Seal,Sanitary Pump Seal |
||
|
Seal size (mm) |
d | d3 | d7 | l1k | l1 | b | ||||||
| 28 |
28 35 50 |
50.0 64.0 74.5 |
44 54 70 |
40.0 45.5 57.4 |
30.0 35.5 45.2 |
10.0 10.0 12.2 |
||||||
| 35 | ||||||||||||
| 50 | ||||||||||||
|
Seal size (inch) |
d | d3 | d7 | l1k | l1 | b | ||||||
| 1-1/8" |
28.575 38.100 50.800 |
50.0 66.0 75.5 |
44.450 53.975 69.850 |
41.1 45.5 58.2 |
30.0 35.5 45.2 |
11.1 10.0 13.0 |
||||||
| 1-1/2" | ||||||||||||
| 2" | ||||||||||||

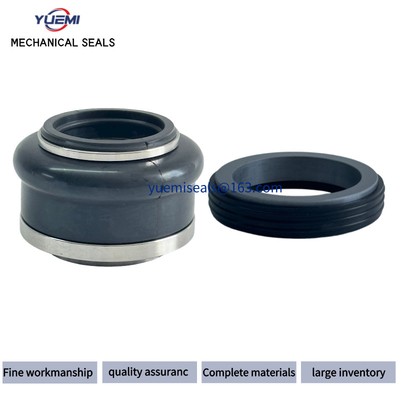

Mechanical Seals for Hidristahle HIDROSTAL
|
Temperature
|
-30ºC to 200ºC, Dependent on the elastomer
|
|
Pressure
|
Up to 10 bar
|
|
Speed
|
Up to 15 m/s
|
|
End play/axial float allowance
|
±0.1mm
|
|
Brand
|
yuemi
|
| Size | 1 1/8' , 1 1/2" , 2.000" |
|
Face
|
Carbon,Sic,TC
|
|
Seat
|
SiC,TC
|
|
Elastomer
|
NBR, EPDM, VITON
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
