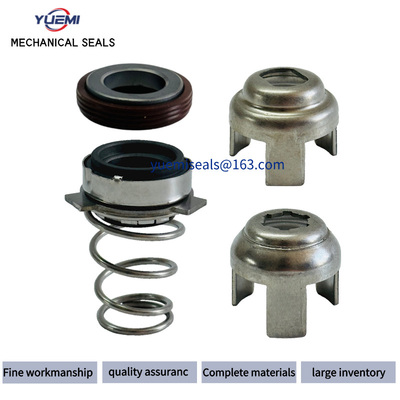

Product Details:
|
| Traemark: | YUE MI | Model No: | GLF-T-12.7 |
|---|---|---|---|
| Origin: | Guangzhou, China | Type: | Single Spring |
| Structure: | Parallel Spring | Application: | Water Pumps |
| Highlight: | Grundfos Water Pump Mechanical Seal,GLF-T-1/2” Water Pump Mechanical Seal,GLF-T-12.7 Water Pump Mechanical Seal |
||
DETAILS
|
Operational Condtions:
|
|
|
Temperature
|
-20°C to+120°C
|
|
Pressure
|
≤1.2MPa
|
|
Speed
|
≤10m/s
|
|
Materials:
|
|
|
Stationary Ring
|
Ceramic(Alumna)
|
|
Silicon Carbide,Sintered Pressureless
|
|
|
Silicon Carbide ,Reaction bonded
|
|
|
Co-binder tungsten Carbide
|
|
|
Rotary Ring
|
Resin lmpregnate Carbon Graphite(Furan)
|
|
Antimony lmpreg Carbon Graphite
|
|
|
Silicon Carbide,Sintered Pressureless
|
|
|
Silicon Carbide ,Reaction bonded
|
|
|
Secondary Seal
|
NBR
|
|
EPDM
|
|
|
Vit
|
|
|
Spring and Metal Parts
|
Stainless steel 304
|
|
Stainless steel 3116
|
|
|
Seat Type:
|
|
|
Standard
|
G60
|
|
Alternative
|
G6,CT20,GEG9
|
|
Applications:
|
|
|
Clean water,sewage water,oil and other moderately corrosive fluids.
|
|
Working Conditions
Mediums: Petroleum products,chemical solvents,medium and weak corrsive acids, etc.
Temperature: - 20ºC to + 180 ºC
Pressure: ≤ 1.2 MPa
Speed: ≤ 10 m/s
Seal Size:
12.7mm
Combined Materials
Rotary Ring : Carbon / Sic / TC
Stationary Ring : Carbon / Sic / TC
Secondary Seal : NBR / EPDM / Viton
Spring and Metal Parts: SUS304
Mechanical seals are extremely important in a machine and/or pump. The seals prevent leakage which can cause damage to a pump. There are primary and secondary seals which consist of other types of seals. Priest Electric is a great source to find out which seal is correct for your pump.
The primary mechanical seal consists of a stationary seal and a rotating seal. These seals are extremely flat and "rub" together, lapped within two light bands. Together these seals prevent leakage because of their flatness and are 85 light bands to one thousandth of an inch. There may be some very minor leakage between these faces however it appears as a vapor.
