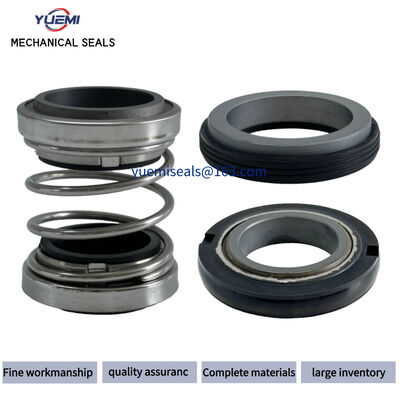

Product Details:
|
| Features: | Self-aligning, Stationary Design | Dimensions: | Depend Your Model |
|---|---|---|---|
| Service: | OEM Service | Function: | For Pump |
| Usage: | Unbalanced | Model: | 560D |
| Secondary Seal: | NBR, EPDM, Fkm | Sample: | Can Provide |
| Quality Control: | 100% Control | ||
| Highlight: | Vulcan 260b Mechanical Seal,Tsurumi B Sewage Pump Mechanical Seal,CNP WQ Pumps Mechanical Seal |
||
|
Temperature
|
-30ºC to 200ºC, dependent on the elastomer
|
|
Pressure
|
Up to 10 bar
|
|
Speed
|
Up to 15 m/s
|
|
End play/axial float allowance
|
±0.1mm
|
|
Brand
|
YM
|
|
Face
|
Carbon, SiC, TC
|
|
Seat
|
Ceramic, SiC, TC
|
|
Elastomer
|
NBR, EPDM, VITON
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
| ITEM | DESCRIPTION |
| 1.1 | Seal face |
| 1.2 | Bellows |
| 1.3 | Spring collar |
| 1.4 | Drive collar |
| 1.5 | Spring |
| 2 | Seat |
| 3 | Corner sleeve |
| 4 | Washer |
| d | d1 | d2 | d3 | d4 | d5 | l | l1 | l2 | l3 |
|---|---|---|---|---|---|---|---|---|---|
| 13 | 25 | 17 | 25 | - | - | 36 | 5 | - | - |
| 14 | 30 | 20 | 30 | - | - | 36 | 5 | - | - |
| 15 | 30 | 20 | 30 | - | - | 36 | 5 | - | - |
| 16 | 30 | 20 | 30 | - | - | 36 | 5 | - | - |
| 20 | 44 | 23 | 38 | 60 | 72 | 49 | 7 | 7 | 1.0 |
| 25 | 50 | 28 | 44 | 60 | 72 | 51 | 7 | 7 | 1.0 |
| 30 | 57 | 33 | 50 | 70 | 82 | 59 | 9 | 8 | 1.0 |
| 35 | 64 | 38 | 58 | 80 | 94 | 61 | 9 | 9 | 1.2 |
| 40 | 70 | 43 | 64 | 85 | 100 | 64.5 | 11 | 9 | 1.2 |
| 45 | 70 | 48 | 66 | 90 | 105 | 65 | 10 | 9 | 1.0 |
| 50 | 80 | 53 | 72 | 95 | 109 | 69.5 | 10 | 9 | 1.2 |
