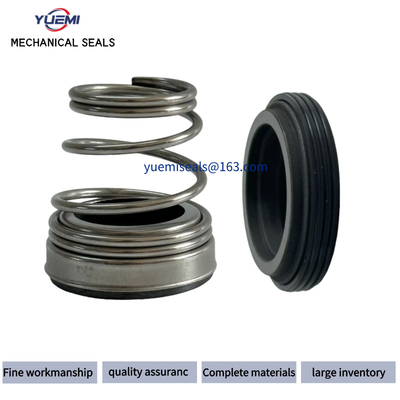

Product Details:
|
| Sku: | TF3 | Secondary Sealing: | Fkm EPDM |
|---|---|---|---|
| Performance: | High Pressure | Leadtime: | Fast To Ship |
| Quality Control: | 100% Control | Key Word: | Mechanical Seal |
| Spring: | SS304, SS316 | Material: | Carbon, Ceramic, Stainless Steel |
| Highlight: | Grundf Jp5 Mechanical Seal,Jp6 Mechanical Seal,Spx Pump Mechanical Seal |
||
Operating Limits
Pressure: ≤1MPa
Speed: ≤15 m/s
Temperature: -30℃～+200℃
Rotary Ring(SiC/TC)
Stationary Ring(Plastic Carbon/Carbon/SiC/TC)
Secondary Seal(NBR/EPDM/VITON)
Spring & Other Parts(SUS304/SUS316)
| Model | di(mm) | d1 | d7 | 1 | b | |||||
|
YM155-10 YM155-11 YM155-12 YM155-13 YM155-14 YM155-15 YM155-16 YM155-17 YM155-18 YM155-19 YM155-20 YM155-21 |
10 11 12 13 14 15 16 17 18 19 20 21 |
20.0 220 220 25.0 25.0 29.0 29.0 29.0 33.0 33.0 33.0 38.0 |
18.1 20.6 20.6 23.1 23.1 26.9 26.9 26.9 30.9 30.9 30.9 35.4 |
20.5 23.5 23.5 28.0 28.0 30.0 30.0 30.0 32.0 33.0 33.0 33.0 |
5.5 5.5 5.5 6.0 6.0 7.0 7.0 7.0 8.0 8.0 8.0 8.0 |
|||||
| Model | di(mm) | d1 | dr | 11 | b3 | |||||
|
YM155-22 YM155-23 YM155-24 YM155-25 YM155-28 YM155-29 YM155-30 YM155-32 YM155-33 YM155-35 YM155-38 YM155-40 |
22 23 24 25 28 29 30 32 33 35 38 40 |
38.0 38.0 38.0 40.0 46.0 46.0 46.0 46.0 50.0 50.0 60.5 60.5 |
35.4 35.4 35.4 38.2 43.3 43.3 43.3 43.3 53.5 53.5 60.5 60.5 |
33.0 35.0 35.0 35.5 39.0 39.0 39.0 39.0 50.5 50.5 50.5 50.5 |
8.0 8.0 8.0 8.5 9.0 9.0 9.0 9.0 11.5 11.5 11.5 11.5 |
|||||
1. Are you manufacturer or Trade Company?
We are a professional mechanical seals manufacturer from China
2.Where is your factory located? How can I visit there?
Our factory is located in GUANGZHOU CITY ,GUANGDONG PROVINCE, by air to Guangzhou Baiyun International Airportt
3. What's the order process?
a. Inquiry---provide us all clear requirements
b. Quotation---official quotation form with all clear specifications.
c. Payment terms---LC/ AT SIGHT, T/T 30% deposit, and the balance according to the copy of the B/L
d. Develop mould---open the mould according to your request.
e. Sample confirmation---send you the sample for confirmation after finish the sample production
f. Production---mass order production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
4. What terms of payment you use?
T/T, L/C ,D/P ,Western Union, Cash
Contact Person: ZENG
Tel: +8617620005542
