Product Details:
|
| Seal Type: | Shaft Seal | Oem Service: | Available |
|---|---|---|---|
| Model NO.: | P07,92 | Processing: | Drawing Basis |
| Stationary Ring: | SIC/SIC,SIC/CER | For: | Aifa Laval Pump |
| Highlight: | Aifa Laval Pump Seal,YM92-35 Pump Seal,Sanitary Pumps Pump Seal |
||

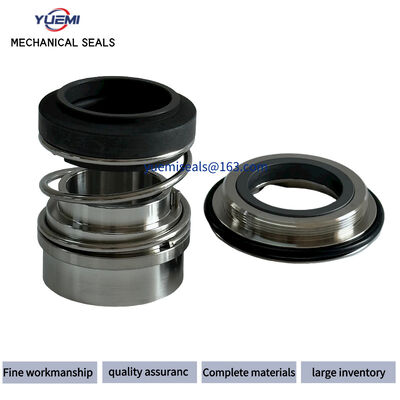

Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components are held togther by a snap ring in a unized construction design and can be repaired easily on-site.
Mechanical Seals 92-31.7mm,41.275mm, LKH series pump type 92-31.7mm,41.275mm, mechanical seal replace AES P07
Mechanical Series for Sanitary Pumps
YM-P07 Seals For Afa Laval Pumps,With single seals
Matorials:
Siationary Ring:F,G,022Rotary Ring:B,02Sacondary Saal:V,P.E
SIZE:31.7mm,41.275mm
| Temperature | -30ºC to 200ºC, dependent on the elastomer |
| Pressure | Up to 10 bar |
| Speed | Up to 15 m/s |
| End play/axial float allowance | ±0.1mm |
| Size | 31.7mm,41.275mm |
| Brand | YM |
| Face | Carbon, SiC |
| Seat | SUS304,SUS316, SIC, TC |
| Elastomer | NBR, EPDM, VITON etc. |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Idividual Packing | Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton. |
mechanical seal could be interchangeable with John crane, BGM, Aesseal, Vulcan, Roten seals etc.
All ranges of mechanical seals for Flygt Pumps, GRF Pumps,
APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA
Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha,
Vogelsang Pumps etc.
At the meantime, we could manufacture seals according to your sample or
drawing, and design as your request.
With advanced designer&manufacturer of machanical seal, for industrial pump,
its range involves in: industrial pump mechanical seal, mixer and agitator seal,
cartridge seal, metal bellows seal, auto cooling pump seal and suto air-condition compressor lip seal.
It is widely used and highly reliable in food, drink, petroleum, chemistry,
refinery, paper making, pharmacy, power and auto industry etc.
Characteristics:
High and low temperature resistant, acid-alkali resistant, ozone resistant, aging resistant, weather resistant, good
insulation property, anti-toxic, good air-permeable, etc.
