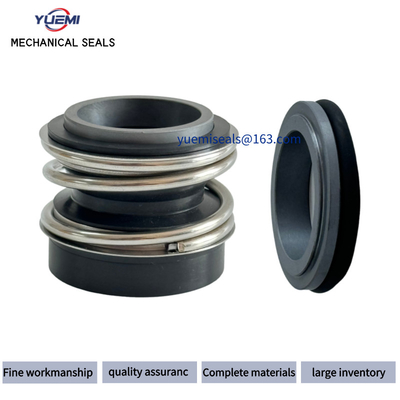

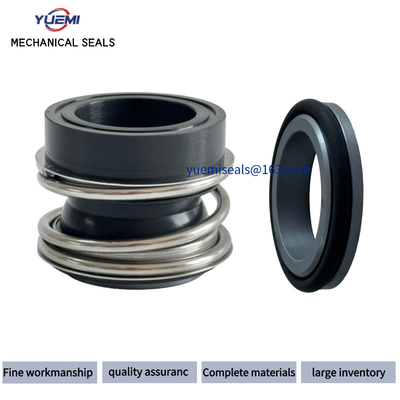

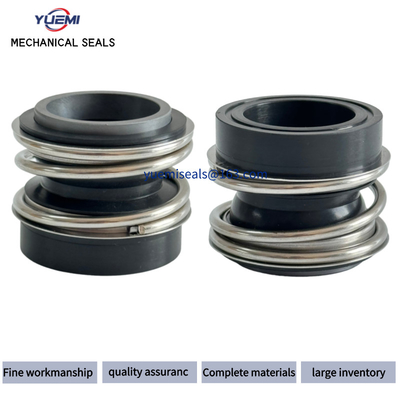

Elastomer Bellows Rotating Mechanical Seal Mg12-G606 Rubber Rotary Shaft Seal Water Pump Chemical Helical Screw

Elastomer Bellows Rotating Mechanical Seal Mg12-G606 Rubber Rotary Shaft Seal Water Pump Chemical Helical Screw
Elastomer Bellows Rotating Mechanical Seal Mg12-G606 Rubber Rotary Shaft Seal Water Pump Chemical Helical Screw Elastomer Bellows Rotating Mechanical Seal Mg12-G606 Rubber Rotary Shaft Seal Water Pump Chemical Helical Screw Elastomer Bellows Rotating Mechanical Seal Mg12-G606 Rubber Rotary Shaft Seal Water Pump Chemical Helical Screw

Large Image :  Elastomer Bellows Rotating Mechanical Seal Mg12-G606 Rubber Rotary Shaft Seal Water Pump Chemical Helical Screw

Product Details:
Place of Origin: Guangzhou, China
Brand Name: YUE MI
Certification: ISO SGS
Model Number: MG12-G606
Payment & Shipping Terms:
Minimum Order Quantity: 1/PCS
Price: consult
Packaging Details: Details Carton
Delivery Time: 5-8 word days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100/Set/Month
Contact Now

Elastomer Bellows Rotating Mechanical Seal Mg12-G606 Rubber Rotary Shaft Seal Water Pump Chemical Helical Screw

Description
Model No: MG12-G606 Industry: Power Plants
Material: Stainles Steel/Alloy Surface: Anti-Rusting
Processing: Drawing Basis Leadtime: Fast To Ship
Stationary Ring: Ceramic/SiC/TC Secondary Sealing: Fkm NBR EPDM CE SIC
Highlight:

Elastomer Bellows Rotating Mechanical Seal

,

Rubber Rotary Shaft Seal

MG12 Mechanical Seal
Model Number:MG12-G606
Rotary Ring :Ceramic/SiC
Stationary Ring:Carbon/SiC
Secondary seal :NBR/HNBR/EPDM/VITON
Spring & Other parts:SS304/SS316
Style:Mechanical seal
Temperature:-20ºC~140ºC

Used in differend pumps,mixers and other rotating equipments which apply to oil,water and other weak corrosive solutions.

Materials should be selected according to operation condition.

Style Mechanical seal
Standarsd or Nostandard Standard
Temperature -20ºC~140ºC
Pressure ≤1.6Mpa
Speeds ≤ 10m/sec
Rotary ring CARBON/SIC/TC
Stationary ring CERAMIC/SIC/TC
Secondary seal NBR/VITON/EPDM
Spring&Other parts SS304/SS316
OEM yes
Custom products Accept custom
Sample yes



Elastomer Bellows Rotating Mechanical Seal Mg12-G606 Rubber Rotary Shaft Seal Water Pump Chemical Helical Screw 0



10 10 22.5 17 21 14.5 25.9 33.4 25 6.6
12 12 25 19 23 15 25.9 33.4 25 6.6
14 14 28.5 21 25 17 28.4 33.4 25 6.6
15 15 28.5 - - 17 28.4 33.4 25 -
16 16 28.5 23 27 17 28.4 33.4 25 6.6
18 18 32 27 33 19.5 30 37.5 25 7.5
19 19 37 - - 21.5 30 37.5 25 -
20 20 37 29 35 21.5 30 37.5 25 7.5
22 22 37 31 37 21.5 30 37.5 25 7.5
24 24 42.5 33 39 22.5 32.5 42.5 25 7.5
25 25 42.5 34 40 23 32.5 42.5 25 7.5
28 28 49 37 43 26.5 35 42.5 33 7.5
30 30 49 39 45 26.5 35 42.5 33 7.5
32 32 53.5 42 48 27.5 35 47.5 33 7.5
33 33 53.5 42 48 27.5 35 47.5 33 7.5
35 35 57 44 50 28.5 35 47.5 33 7.5
38 38 59 49 56 30 36 46 33 9
40 40 62 51 58 30 36 46 33 9
42 42 65.5 - - 30 36 51 41 -
43 43 65.5 54 61 30 36 51 41 9
45 45 68 56 63 30 36 51 41 9
48 48 70.5 59 66 30.5 36 51 41 9
50 50 74 62 70 30.5 38 50.5 41 9.5
53 53 78.5 65 73 33 36.5 59 41 11
55 55 81 67 75 35 36.5 59 41 11
58 58 85.5 70 78 37 41.5 59 41 11
60 60 88.5 72 80 38 41.5 59 41 11
65 65 93.5 77 85 40 41.5 69 49 11
68 68 96.5 81 90 40 41.2 68.7 49 11.3
70 70 99.5 83 92 40 48.7 68.7 49 11.3
75 75 107 88 97 40 48.7 68.7 52 11.3
80 80 112 95 105 40 48 78 56 12
