M37G G9 Mechanical Seal Rubber Bellows BT-RN Aesseal T03 Flowserve 42 Roten 2 Seal For Pump

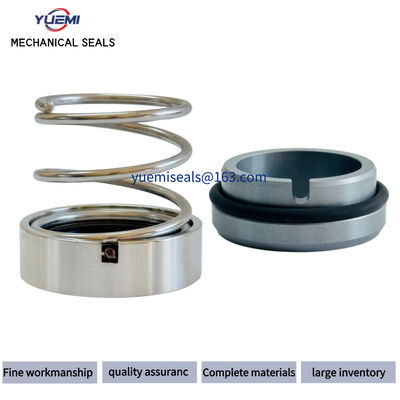

Large Image : M37G G9 Mechanical Seal Rubber Bellows BT-RN Aesseal T03 Flowserve 42 Roten 2 Seal For Pump

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	YUE MI
Certification:	ISO SGS
Model Number:	M37G-G9

Payment & Shipping Terms:

Minimum Order Quantity:	1/PCS
Price:	consult
Packaging Details:	Details Carton
Delivery Time:	5-8 word days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100/Set/Month

Contact Now

M37G G9 Mechanical Seal Rubber Bellows BT-RN Aesseal T03 Flowserve 42 Roten 2 Seal For Pump

Description

Sealing:	FKM CAR SIC TC CE NBR EPDM	Stationary Ring:	Sic/Ssic/Tc
Item:	M37G G9	Application:	Water Pumps
Pump:	BGM Pump	Seal:	Submersible Pump Seal
Export Area:	All Over The World
Highlight:	Flowserve Mechanical Seal Rubber Bellows , BT-RN Mechanical Seal Rubber Bellows , M37G Mechanical Seal Rubber Bellows

Product Description

1. EQUIVALENT TO:
Bgm BT-RN seal
Aesseal T03 seal
Flowserve 42 seal
Latty T900 seal
Roten 2 seal
Sterling SR2 seal

2. Applicable Range:
Pressure in the seal chamber: 0-1.2MPa
Temperature in the seal chamber: -30ºC~180ºC
Linear Velocity: ≤ 10m/s
Medium: water, polluted water, oil and minor corrosive liquid

3. Features:
Complies with DIN24960
Certificate: ISO9001:2008
High quality and competitive price

Materials

ROTARY FACES: Silicon Carbide, Tungsten Carbide, Carbon Graphite
STATIONARY SEATS: Silicon Carbide, Alumina Ceramic, Carbon Graphite
BELLOWS: NBR, Vit/FKM, EPDM, Aflas, Neoprene
METAL PARTS: 304 SS standard or 316 SS option available

Operating Parameters

Dimensions:	all
Pressure:	145 PSI / 10 BAR
Temperature:	160°C / 320°F
Velocity:	10 M/S - 2000 FPM

Technical Features

Unbalanced
Single seal
Conical spring
Dynamic O-ring
To DIN 24960 specifications

Applications

Chemical pump
Oil pump
Water and waste water technology
Pulp and paper industry
Sugar industry
Industrial pump

M37G G9 Mechanical Seal Rubber Bellows BT-RN Aesseal T03 Flowserve 42 Roten 2 Seal For Pump 0

M37G Dimensions(mm)	Size	10	12	14	16	18	20	22	24	25	28	30	32	33	35	38	40	43	45	48	50	53	55	58	60	63	65	68	70	75	80
	d	10.0	12.0	14.0	16.0	18.0	20.0	22.0	24.0	25.0	28.0	30.0	32.0	33.0	35.0	38.0	40.0	43.0	45.0	48.0	50.0	53.0	55.0	58.0	60.0	63.0	65.0	68.0	70.0	75.0	80.0
	D3	20.0	220	24.0	26.0	31.0	34.0	36.0	38.0	39.0	42.0	44.0	46.0	47.0	49.0	54.0	56.0	59.0	61.0	64.0	66.0	0.69	71.0	78.0	79.0	83.0	85.0	88.0	90.0	98.0	103.0
	D6	17.0	19.0	21.0	23.0	27.0	29.0	31.0	33.0	34.0	37.0	39.0	42.0	42.0	44.0	49.0	51.0	54.0	56.0	59.0	62.0	65.0	67.0	70.0	720	75.0	77.0	81.0	83.0	88.0	95.0
	D7	21.0	23.0	25.0	27.0	33.0	35.0	37.0	39.0	40.0	43.0	45.0	48.0	48.0	50.0	56.0	58.0	61.0	63.0	66.0	70.0	73.0	75.0	78.0	80.0	83.0	85.0	90.0	92.0	97.0	105.0
	D8	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0
	L3	16.9	17.4	17.4	19.5	20.5	22.0	23.5	25.0	26.5	26.5	25.0	28.5	-	28.5	32.2	34.7	-	39.2	44.7	45.7	-	49.0	52.0	53.0	-	54.3	55.3	56.3	56.3	59.3
	L31	-	-	16.5	16.5	18.0	19.0	20.5	22.0	23.5	24.5	24.5	28.0	-	28.0	31.0	34.0	--	36.5	42.0	43.0	-	47.0	50.0	51.0	--	52.0	52.7	54.0	54.0	58.0
	L4	10.0	10.0	10.0	10.0	11.5	11.5	11.5	11.5	11.5	11.5	11.5	11.5	11.5	11.5	14.0	14.0	14.0	14.0	14.0	15.0	15.0	15.0	15.0	15.0	15.0	15.0	18.0	18.0	18.0	18.2
	L8	17.5	17.5	17.5	17.5	19.5	19.5	19.5	19.5	19.5	19.5	19.5	19.5	19.5	19.5	220	22.0	22.0	22.0	220	23.0	23.0	23.0	23.0	23.0	23.0	23.0	26.0	26.0	26.0	26.2
