Product Details:
|

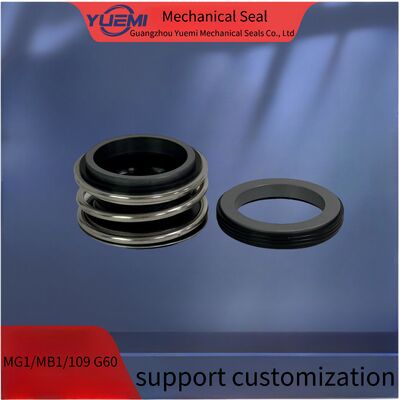

| Traemark: | YUEMI | Function: | Rubber Bellow Seal |
|---|---|---|---|
| Usage: | Unbalanced Seal | Shaft Diameter: | MG1-12mm-110mm |
| Secondary Sealing: | CAR SIC TC CE/ NBR EPDMFKM | Replacement: | Mg1 Replacement |
| Highlight: | Borgmann G60 Water Pump Mechanical Seal,100mm Water Pump Mechanical Seal,Borgmann G60 mech seal pump |
||
| d1 | d3 | d7 | d8 | d7-1 | l3 | l2 | l1 | l4 | l5 MG1 | l6 MG1S20 | l7 MG12 | l8 MG13 |
| 10 | 22 | 21 | 19.2 | 24.6 | 6.5 | 6.5 | 6 | 10 | 14.7 | 25.5 | 26 | 33.5 |
| 12 | 24.5 | 23 | 21.6 | 27.8 | 6.5 | 5.5 | 9 | 10 | 15.2 | 25.5 | 26 | 33.5 |
| 14 | 28 | 25 | 24.6 | 30.95 | 6.5 | 5.5 | 10.5 | 10 | 17.2 | 25.5 | 28.5 | 33.5 |
| 15 | 28 | 27 | 24.6 | 30.95 | 6.5 | 6.5 | 10.5 | 10 | 17.2 | 25.5 | 28.5 | 33.5 |
| 16 | 28 | 27 | 28 | 30.95 | 6.5 | 7.5 | 10.5 | 10 | 17.2 | 25.5 | 28.5 | 33.5 |
| 18 | 31.5 | 33 | 30 | 34.15 | 7.5 | 8 | 10.5 | 11.4 | 19.7 | 25.5 | 30.1 | 37.7 |
| 19 | 36.5 | 35 | 35 | 34.15 | 7.5 | 7.5 | 10.5 | 11.4 | 21.7 | 25.5 | 30.1 | 37.7 |
| 20 | 36.5 | 35 | 35 | 35.7 | 7.5 | 7.5 | 10.5 | 11.4 | 21.7 | 25.5 | 30.1 | 37.7 |
| 22 | 36.5 | 37 | 35 | 37.3 | 7.5 | 7.5 | 10.5 | 11.4 | 21.7 | 25.5 | 30.1 | 37.7 |
| 24 | 42 | 39 | 38 | 40.5 | 7.5 | 7.5 | 10.5 | 11.4 | 22.7 | 25.5 | 32.7 | 42.7 |
| 25 | 42 | 40 | 38 | 40.5 | 7.5 | 7.5 | 10.5 | 11.4 | 23.2 | 25.5 | 32.7 | 42.7 |
| 28 | 48.5 | 43 | 42 | 46.65 | 7.5 | 9 | 12 | 11.4 | 26.7 | 33.5 | 35.2 | 42.7 |
| 30 | 48.5 | 45 | 45 | 50.8 | 7.5 | 10.5 | 12 | 11.4 | 26.7 | 33.5 | 35.2 | 42.7 |
| 32 | 53 | 48 | 48 | 50.8 | 7.5 | 10.5 | 12 | 11.4 | 27.7 | 33.5 | 35.2 | 47.7 |
| 33 | 53 | 48 | 50 | 54 | 7.5 | 11 | 12 | 11.4 | 27.7 | 33.5 | 35.2 | 47.7 |
| 35 | 56.5 | 50 | 52 | 54 | 7.5 | 11 | 12 | 11.4 | 28.7 | 33.5 | 35.2 | 47.7 |
| 38 | 58.5 | 56 | 55 | 57.15 | 9 | 10.5 | 12 | 14 | 30.2 | 33.5 | 36.2 | 46.2 |
| 40 | 61.5 | 58 | 58 | 60.35 | 9 | 10.8 | 12 | 14 | 30.2 | 33.5 | 36.2 | 46.2 |
| 42 | 65 | 61 | 62 | 63.5 | 6 | 12 | 12 | 14 | 30.2 | 41.5 | 36.2 | 46.2 |
| 43 | 65 | 61 | 62 | 63.5 | 9 | 12 | 12 | 14 | 30.2 | 41.5 | 36.2 | 51.2 |
| 45 | 67.5 | 63 | 64 | 63.5 | 9 | 11.5 | 12 | 14 | 30.2 | 41.5 | 36.2 | 51.2 |
| 48 | 70 | 66 | 68.4 | 66.7 | 9 | 11.5 | 12 | 14 | 30.7 | 41.5 | 36.2 | 51.2 |
| 50 | 73.5 | 70 | 69.3 | 69.85 | 9.5 | 11.5 | 13.5 | 15 | 30.7 | 41.5 | 38.2 | 50.7 |
| 53 | 78 | 73 | 72.3 | 73.05 | 11 | 12.5 | 13.5 | 15 | 33.2 | 41.5 | 36.7 | 59.2 |
| 55 | 80.5 | 75 | 75.4 | 76.2 | 11 | 13.5 | 13.5 | 15 | 35.2 | 41.5 | 36.7 | 59.2 |
| 58 | 85 | 78 | 78.4 | 79.4 | 11 | 13.5 | 13.5 | 15 | 37.2 | 41.5 | 41.7 | 59.2 |
| 60 | 88 | 80 | 80.4 | 79.4 | 11 | 13.5 | 13.5 | 15 | 38.2 | 41.5 | 41.7 | 59.2 |
| 65 | 93 | 85 | 85.4 | 92.1 | 11 | 13 | 16 | 15 | 40.2 | 49.5 | 41.7 | 69.2 |
| 68 | 96 | 90 | 91.5 | 95.25 | 11.5 | 13.7 | 16 | 18 | 40.2 | 49.5 | 41.3 | 69 |
| 70 | 99 | 92 | 92 | 95.25 | 11.5 | 13 | 16 | 18 | 40.2 | 49.5 | 49 | 69 |
| 75 | 106.5 | 97 | 99 | 101.6 | 11.5 | 14 | 16 | 18 | 40.2 | 52.5 | 49 | 69 |
| 08 | 111.5 | 105 | 104 | 114.3 | 12 | 15 | 20 | 18.3 | 40.2 | 56.5 | 48.2 | 78.2 |
| 85 | 119.5 | 110 | 109 | 117.5 | 14 | 15 | 20 | 18.3 | 41.2 | 56.5 | 46.2 | 76.2 |
| 90 | 126.5 | 115 | 114 | 123.85 | 14 | 15 | 20 | 18.3 | 15.2 | 59.5 | 51.2 | 76.2 |
| 95 | 131.5 | 120 | 120.3 | 127 | 14 | 16 | 20 | 17.3 | 46.2 | 59.5 | 51.2 | 76.2 |
| 100 | 136.5 | 125 | 123.3 | 133.35 | 14 | 16 | 20 | 17.3 | 47.2 | 62.5 | 51.2 | 76.2 |
Pumps:All types of rotating equipment,such as centrifugal pumps,agitators,for most general and light chemical duties, wherever an elastomer Secondary Seal can be used.
Temperature:-30℃~200℃
Pressure:≤1.2Mpa
Speed:≤12m/Sec
Design features:
Elastomeric bellows seal design including
kinds of statconary ring,complying with DIN24960 and
ISO3069,combined with G60,G50,G6,G4,G9,G606,etc.
Technical Parameters
| Temperature | -30℃~+200℃ |
| pressure | ≤0-0.8Mp a |
| Speed | ≤10m/s |
| Medium | water |
Materials
| Rotary Ring |
SiC/VIT |
| Stationary Ring |
SiC/VIT |
| Spring | SUS304/SUS316 |
| Stationary Seat | SUS304/SUS316 |
| Secondary Seal |
Fkm/EPDM |
| Rotary Ring Holder | SUS304/SUS316 |
Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring
Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.
Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.
2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil
3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position
B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.
Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
