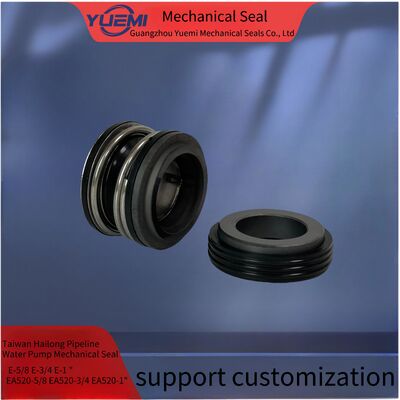

Pipe pumps Bellows Water Pump Mechanical Seal EA520-5/8/3/4/1"

Bellows Water Pump Mechanical Seal E-5/8 E-3/4 E-1 "EA520-5/8 EA520-3/4 EA520-1"

Model	d1(inches)	d7	d3	d6	d2	11	13
E-5/16"	7.925	25.400	27.00	16.00	20.63	24.60	8.0
E-3/8"	9.520	22.225	23.80	14.30	17.42	22.22	6.2
E-1/2"	12.700	25.400	26.97	17.45	20.63	22.80	6.2
E-5/8"	15.875	30.100	30.94	20.63	23.80	26.50	8.7
E-5/8"H	15.875	31.750	30.94	20.63	23.80	30.00	10.3
E-5/8"K	15.875	31.750	30.94	20.63	23.80	28.50	10.3
E-3/4"H	19.050	34.925	34.11	23.80	26.87	30.00	10.3
E-3/4"C	19.050	34.925	34.11	23.80	26.87	28.50	10.3
E-1"	25.400	41.275	42.85	30.15	33.33	31.73	11.1
E-11/8"	28.575	44.45	46.00	33.50	36.50	31.75	11.1

                                                                                                                                                                         Technical Parameters




Materials



Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring
Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.
Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.

2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil

3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position
B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.
Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
