Product Details:
|

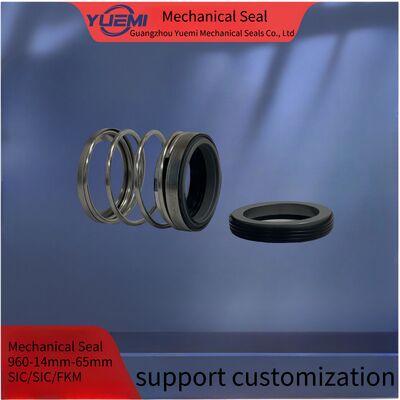

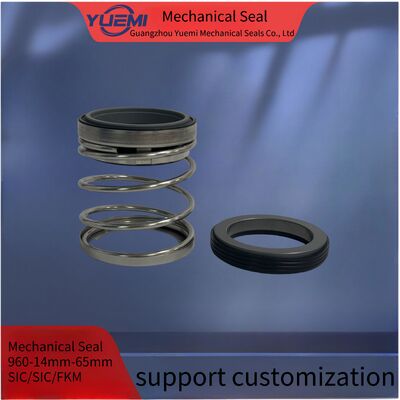

| Seal: | Submersible Pump Seal | Shaft Diameter: | 960-14mm-65mm |
|---|---|---|---|
| 960 Seal: | Spring Seal | Usage: | Power Station, Gas, Sewage Treatment, Public Works, Chemical, Papermaking, Pharmaceutica |
| Type: | Rubber Bellow Seal | ||
| Highlight: | 14mm cartridge mechanical seal,FKM cartridge mechanical seal,Pipeline bellow mechanical |
||
| Operational Conditions: | |
| Temperature: | -50ºC to+200ºC |
| Pressure: | ≤1.2Mpa |
| Speed: | ≤20m/s |
| Materials: | |
| Stationary Ring: | Silicon Carbide ,Reaction bonded Resin lmpregnate Carton Graohite(Furan) Ni-binder tungsten Carbide |
| Rotary Ring: | Ni-binder tungsten Carbide(shrunk-in) Silicon carbide,Reaction bonded(shrunk-in) |
| Secondary Seal: | NBR,EPDM,CR,Fkm,Aflas |
| Spring and Metal Parts: | F,G |
| Applications: | Clean water,sewage water,oil |
| And other moderately corrosive fluids. | |
Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring
Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.
Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.
2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil
3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position
B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.
Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
