Grundfos 16mm Mechanical Seal Centrifugal Pump Shaft Seal CM10 15 20

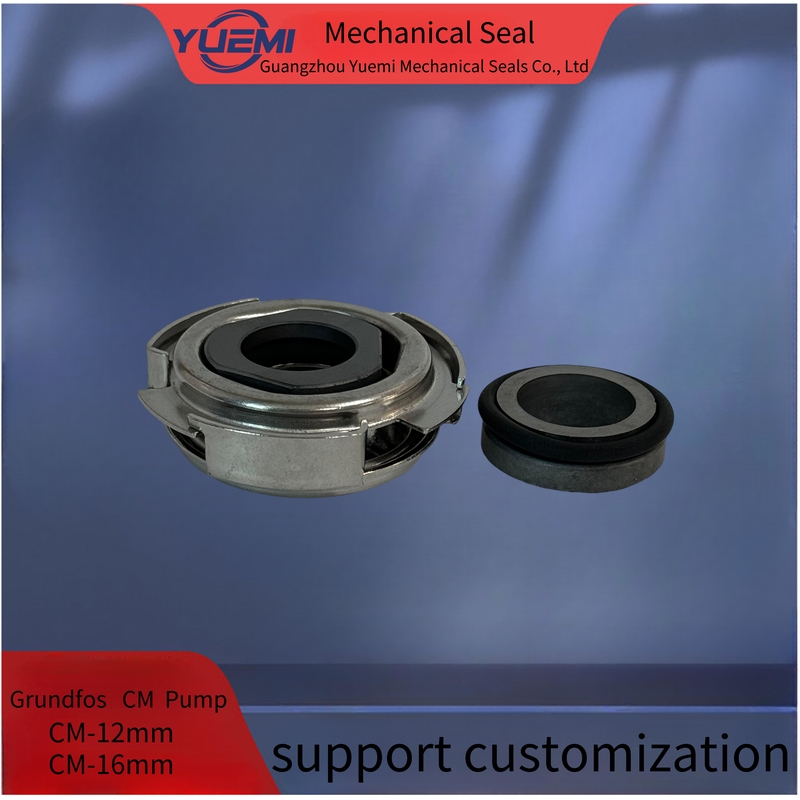

Large Image : Grundfos 16mm Mechanical Seal Centrifugal Pump Shaft Seal CM10 15 20

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	YUE MI
Certification:	ISO SGS
Model Number:	CM-16mm

Payment & Shipping Terms:

Minimum Order Quantity:	1/PCS
Price:	US $ 12.5-28.5/PCS
Packaging Details:	Details Carton
Delivery Time:	2 word days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000/Set/Month

Contact Now

Grundfos 16mm Mechanical Seal Centrifugal Pump Shaft Seal CM10 15 20

Description

Traemark:

YUEMI

Function:

CM Pump

Shaft Diameter:

CM-16mm

Keywords:

GLF Pump Seal

Highlight:

Grundfos 16mm mechanical seal

Centrifugal 16mm mechanical seal

Grundfos centrifugal pump shaft seal

Grundfos 16mm Mechanical Seal Centrifugal Pump Shaft Seal CM10 15 20

Product Overview

Type: Suit for Grundfos CM series pumps

Replacement: AES SOS

Temperature: -20℃ to +180℃

Pressure: ≤1.2Mpa

Speed: ≤10m/s

Material: A.B,Q1,Q2,P,E,V,F,G

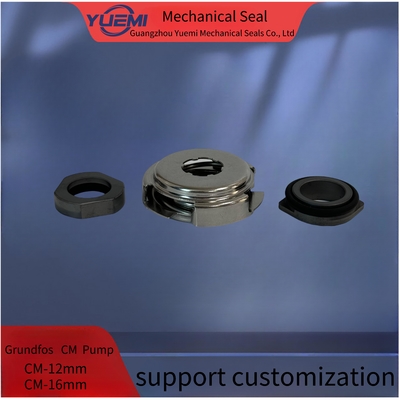

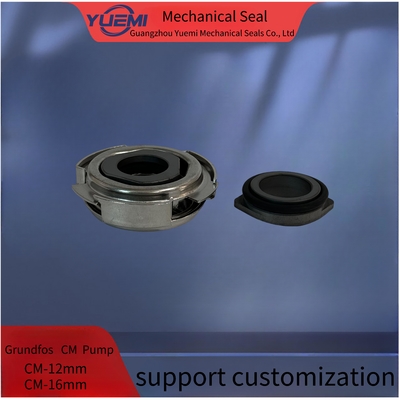

Stationary Options

This mechanical seal offers two stationary configurations:

Round stationary: GR-G11
Elliptical stationary: GR-G11-E

Technical Specifications

P (mm)	D1	D3	T
12	22.5	48	23.6
16	27.0	48	23.6

Detailed Specifications

Shaft Size: 12mm, 16mm

Face Material: Carbon, SiC, TC

Seat Material: SIC, TC

O-rings: NBR, EPDM, Fkm, Aflas, Kalrez, Chemraz

Spring: SS304, SS316

Metal Parts: SS304, SS316

Compatible Pumps

Grundfos pumps: JP Ch8 Ch12 CRK (I) 2 CRK (I) 4 SPK1 SPK2 SPK4 SPK8 Cr2 Cr4 AQQE AQQV 96932392

Installation Preparation

Shaft Outside Diameter tolerance: ±0.05mm
Shaft run out: <0.1mm
Shaft end float: <0.13mm
No sharp edges on the shaft over the O-ring

Important Note: During installation, avoid scratching or damaging the O-ring. If any damage occurs, contact us for replacement.

Installation Instructions

Cartridge seal is pre-cleaned and leak-tested. Do not disassemble before installation.
Ensure shaft fitting allowance is dl h6 0.8. Lubricate shaft with oil.
Place cartridge seal into pump chamber and:
- Tighten four flange bolts, ensuring medium leading hole "G" is at top position
- Tighten four set screws to position shaft sleeve
- Remove four gauge plates (keep for future use)
- Connect medium lead-in pipe to hole "G" for friction heat removal and seal chamber flushing

Post-Installation Check: After installation, manually rotate shaft to verify smooth rotation. Rough rotation indicates improper installation.

We are committed to providing high-quality products and services, believing that establishing long-term cooperative relationships is key to mutual success.
