Product Details:
|

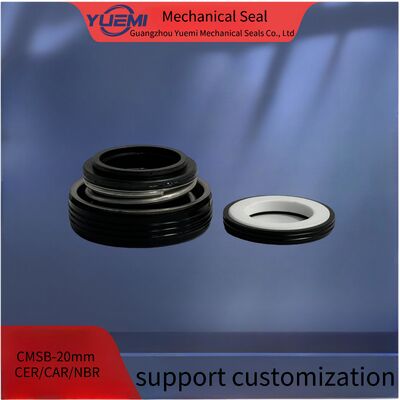

| Traemark: | YUEMI-SB20mm | Pump: | Cosmetic Emulsifying Pot And Stirring Pot |
|---|---|---|---|
| Shaft Diameter: | SB-20mm | Secondary Sealing: | NBR CAR CE |
| Type: | SingleSpringMechanical Seal | ||
| Highlight: | NBR Water Pump Mechanical Seal,CE Water Pump Mechanical Seal,CAR Water Pump Mechanical Seal |
||
| O-Ring Mechanical Seals | |
Temperature: -30ºC to 200ºC, dependent on the elastomer Pressure: Up to 5 bar Speed: Up to 15 m/s End play/axial float allowance: ±0.1mm Size: 10mm to 30mm | Stationary Ring: Plastic Carbon, Carbon, Ceramic Rotary Ring: Ceramic, Silicon Carbide Secondary : NBR/EPDM/FKM |
| SB-10 | 11.0 | 27.0 | 23.0 | 10.5 | 7.1 | 4.0 |
| SB-12 | 14.0 | 32.0 | 25.0 | 10.2 | 8.5 | 5.0 |
| SB-16 | 18.0 | 41.0 | 31.0 | 11.8 | 9.5 | 5.0 |
| SB-16A | 18.0 | 41.0 | 35.0 | 16.5 | 06 | 9.0 |
| SB-17 | 18.5 | 35.0 | 30.0 | 16.0 | 7.5 | 6.0 |
| SB-20 | 21.0 | 45.0 | 35.0 | 11.0 | 11.0 | 5.0 |
| SB-25 | 26.4 | 52.0 | 41.3 | 19.0 | 11.5 | 11.0 |
| SB-30 | 31.0 | 58.0 | 48.0 | 16.5 | 12.0 | 8.5 |
Technical Parameters
| Temperature | -30℃~+180℃ |
| pressure | ≤0.8Mp a |
| Speed | ≤12m/s |
| Medium | Chemical raw materials |
Materials
| Rotary Ring | SIC CAR CE |
| Stationary Ring | SIC CAR CE |
| Spring | SUS304/SUS316 |
| Stationary Seat | SUS304/SUS316 |
| Secondary Seal | Fkm/EPDM |
| Rotary Ring Holder | SUS304/SUS316 |
Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring
Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.
Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.
2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil
3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position
B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.
Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
