Product Details:
|
| Pump: | Cosmetic Emulsifying Pot And Stirring Pot | Function: | Pump |
|---|---|---|---|
| Shaft Diameter: | Blackmer-55mm | Secondary Sealing: | CA SIC |
| Standard Or Nonstandard: | Standard | Traemark: | YUEMI |
| Highlight: | Industrial water pump mechanical seal,Blackmer water pump mechanical seal |
||

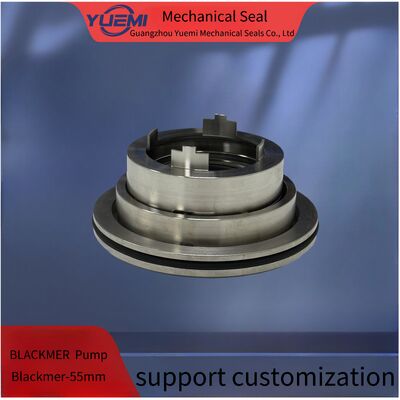

For 35mm 45mm Blackmer Pump Seal 337008 334414 Mechanical Seal
1.YUEMI BLK is For GX & X3" pumps
Used in models: GX3E,X3E,XH3E,TXD3E,TX3ETX1230A
For a GX and X and Pumps Used in models:,XH2.5BTX1.5,TXD2A,TX2A,TXD2.5A,TX2A,TXD2.5A
TX2.5A,TX1220A,TX1225A
Technical Parameters
| Temperature | -30℃~+200℃ |
| pressure | ≤1.2Mp a |
| Speed | ≤12m/s |
Materials
| Rotary Ring | SIC CAR CE TC |
| Stationary Ring |
SIC CAR CE TC |
| Spring | SUS304/SUS316 |
| Stationary Seat | SUS304/SUS316 |
| Secondary Seal |
Fkm/EPDM |
| Rotary Ring Holder | SUS304/SUS316 |
Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring
Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.
Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.
2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil
3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position
B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.
Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
