Product Details:
|

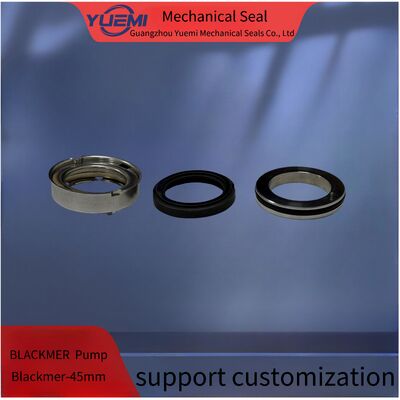

| Pump: | Cosmetic Emulsifying Pot And Stirring Pot | Shaft Diameter: | Blackmer-45mm |
|---|---|---|---|
| Secondary Sealing: | CA SIC | Type Pump Seal: | Blackmer Pump Sea |
| Style: | Mechanical Seal | ||
| Highlight: | 334414 water pump mechanical seal,337008 water pump mechanical seal |
||
Technical Parameters,Materials
|
Temperature
|
-20ºC to 200ºC, dependent on the elastomer
|
|
Pressure
|
Up to 25 bar
|
|
Speed
|
Up to 20 m/s
|
|
Sizes
|
35,45,55mm |
|
Face
|
Carbon, SiC, TC
|
|
Seat
|
SiC, TC
|
|
O-rings
|
NBR, EPDM, Fkm, Aflas, Kalrez, Chemraz etc.
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring
Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.
Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.
2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil
3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position
B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.
Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
