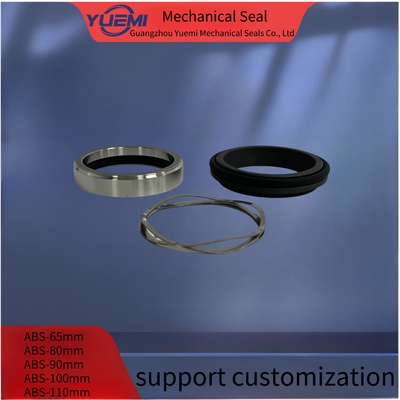

Mechanical seal/Swedish ABS sewage pump/ ABS-65/80/90/100/110 fluororubber stainless steel overlay welding graphite

​

stock seals ready for fast delivery

Provides excellent quality with competitive price

Mechanical seals for ABS, Pumpex, AFP submersible pumps and mixers.

1. Mechanical Seals Commonly used as the upper & lower seal in Pumpex submersible pumps.
Shaft size :32mm,40mm,48mm,55mm,60mm,75mm

1. Pumpex K80& K83 (Dry well K models only) 2. Pumpex K87,K100 & K150(Dry well K models only)

3 Pumpex K89,K153&K103 4. Pumpex K86,K106,K152,K203,K252&K302

5 PX4

Alternative to Bugmann MG7 Mechanical seal

Available in Carbon/SIC or SIC/SIC as standard with Nitrile elastomers as standard.

2. Suit ABS AFP Series pumps , PUMPEX pumps , For identification purposes ,
11110172,11110001,11110095,11110096,11110144,11110093,11110135,11110051,11110055
11110003,11110050,11110052,11110053,11100027 & 28,11100029,11100083,11110173
11100066, 11100058,11100059,11100053,11100055,11100052

3. Upper and lower 25 mm shaft size seals for use together, but available separately, to suit various A.B.S.® submersible pumps:

Vulcan 195P (top seal) Under water mixer M-150 Pump AFP & VUP
Jumbo® Piranha® Pumpex® - SP
FR50/50-26 FR80/80-26 FR100/100-26

Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring

Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.

Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.

2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil

3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position

B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.

Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
