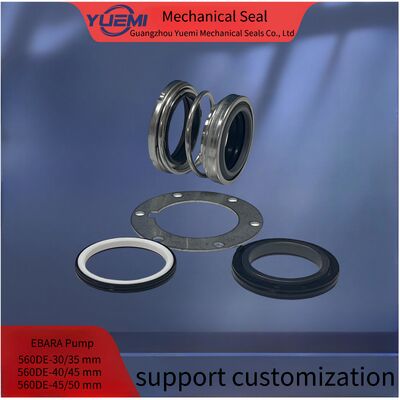

Submersible Combination WQ EBARA Mechanical Seal 560DA-45A For Sewage Pump

Submersible Combination WQ EBARA Mechanical Seal 560DA-45A For Sewage Pump
Submersible Combination WQ EBARA Mechanical Seal 560DA-45A For Sewage Pump
Submersible Combination WQ EBARA Mechanical Seal 560DA-45A For Sewage Pump Submersible Combination WQ EBARA Mechanical Seal 560DA-45A For Sewage Pump Submersible Combination WQ EBARA Mechanical Seal 560DA-45A For Sewage Pump Submersible Combination WQ EBARA Mechanical Seal 560DA-45A For Sewage Pump Submersible Combination WQ EBARA Mechanical Seal 560DA-45A For Sewage Pump

Large Image :  Submersible Combination WQ EBARA Mechanical Seal 560DA-45A For Sewage Pump

Product Details:
Place of Origin: Guangzhou, China
Brand Name: YUE MI
Certification: ISO SGS
Model Number: 560DA-45A
Payment & Shipping Terms:
Minimum Order Quantity: 5/PCS
Price: US $ 58-60/PCS
Packaging Details: Details Carton
Delivery Time: 2 word days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000/Set/Month
Contact Now

Submersible Combination WQ EBARA Mechanical Seal 560DA-45A For Sewage Pump

Description
Traemark: YUEMI Pump: Pump SEAL
Function: Pump Usage: Balanced
Shaft Diameter: 560DA-45A Secondary Sealing: NBR SIC SIC
Standard Or Nonstandard: Standard Keywords: Pump Seal
Type: Single Spring Style: Mechanical Seal
Highlight:

Submersible Ebara Mechanical Seal

,

560DA Ebara Mechanical Seal

,

Submersible mechanical seal pump ebara

Submersible Combination WQ EBARA Mechanical Seal 560DA-45A For Sewage Pump
Application Water Pump Model Pairing Table
Submersible Combination WQ EBARA Mechanical Seal 560DA-45A For Sewage Pump 0
Modeld1d2d3d78Pd9D1D2TL1L2L3h1h2
560DE-303035475063734853.760488.55.51612.5
560DE-404045576073836263.768488.55.51812.5
560DE-454550626780906669.47850.5105.517.512.5
Technical Parameters
Temperature-30℃ ~ +200℃
Pressure≤1 MPa
Speed≤12 m/s
MediumSewage Pump
Materials
Rotary RingSIC CAR CE TC
Stationary RingSIC CAR CE TC
SpringSUS304/SUS316
Stationary SeatSUS304/SUS316
Secondary SealFKM/EPDM
Rotary Ring HolderSUS304/SUS316
Preparation Requirements
  • Shaft Outside Diameter tolerance: ±0.05mm
  • Shaft run out: <0.1mm
  • Shaft end float: <0.13mm
  • No sharp edges on the shaft over the O-ring
Installation Instructions
During installation, avoid scratching or damaging the O-ring. If any damage occurs, contact us for replacement.
  1. Cartridge seals are cleaned and leak-tested before sale. Do not disassemble before installation.
  2. Ensure shaft fitting allowance is d1 h6 0.8. Lubricate shaft with oil.
  3. Place cartridge seal into pump chamber, then:
    • Tighten four flange bolts, ensuring medium leading hole "G" is at top position
    • Tighten four set screws to position shaft sleeve
    • Remove four gauge plates (keep for future use)
    • Connect medium lead-in pipe to hole "G" for cooling and flushing
After installation, manually rotate shaft to check for smooth rotation. If rotation is not smooth, seal was improperly installed.
Submersible Combination WQ EBARA Mechanical Seal 560DA-45A For Sewage Pump 1
We are committed to cooperating with clients to supply high quality products and services. We believe establishing long-term cooperative relationships is key to success.
Submersible Combination WQ EBARA Mechanical Seal 560DA-45A For Sewage Pump 2
Company Information
  • Location: Guangdongsheng, China (established 2014)
  • Export Markets: Western Europe (30%), North America (30%), Southeast Asia (20%), South America (10%), Mid East (10%)
  • Quality Guarantee: Pre-production samples and final inspection before shipment
  • Products: Mechanical seals for pumps from various world-renowned brands
  • Advantage: Manufacturer with 15 years industry experience
  • Services: FOB, CIF, EXW, DDP, Express Delivery; Multiple currency and payment options; Multilingual support
Submersible Combination WQ EBARA Mechanical Seal 560DA-45A For Sewage Pump 3
