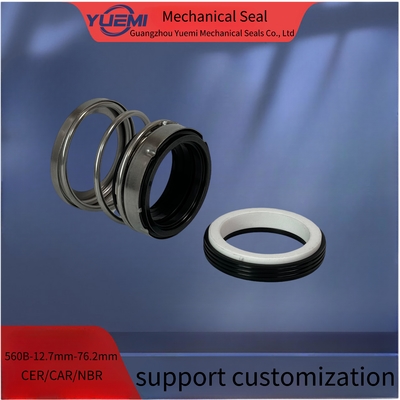

Product Details:
|
| Type: | Rubber Bellow Seals | Function: | Pump |
|---|---|---|---|
| Usage: | Unbalanced | Shaft Diameter: | 0.5-3"mm |
| Face: | NBR CA CE | Keywords: | Elastomer Bellow Seal |
| Highlight: | NBR Water pump mechanical seal,CA Water pump mechanical seal,CE Water pump mechanical seal |
||
Application water pump model pairing table
| Model | d1(inches) | d3 | d6 | d7 | 11 | 13 |
| 560B-3/8" | 9.525 | 23.5 | 14.3 | 22.23 | 28.6 | 7.9 |
| 560B-1/2" | 12.700 | 26 | 17.5 | 25.4 | 28.6 | 7.9 |
| 560B-5/8" | 15.875 | 30 | 20.6 | 31.75 | 32.5 | 10.3 |
| 560B-3/4" | 19.050 | 32.5 | 23.8 | 34.93 | 32.5 | 10.3 |
| 560B-7/8" | 22.225 | 37.5 | 27.0 | 38.1 | 34.1 | 10.3 |
| 560B-1" | 25.400 | 44 | 30.2 | 41.28 | 36.5 | 11.1 |
| 560B-1-1/8" | 28.575 | 48 | 33.3 | 44.45 | 38.1 | 11.1 |
| 560B-1-1/4" | 31.750 | 50 | 36.5 | 47.63 | 38.1 | 11.1 |
| 560B-1-3/8" | 34.925 | 54.5 | 39.7 | 50.8 | 39.7 | 11.1 |
| 560B-1-1/2" | 38.100 | 58.5 | 42.9 | 53.98 | 39.7 | 11.1 |
| 560B-1-5/8" | 41.275 | 64 | 46 | 60.33 | 47.6 | 12.7 |
| 560B-1-3/4" | 44.450 | 67 | 49.2 | 63.5 | 47.6 | 12.7 |
| 560B-1-7/8" | 47.625 | 71 | 52.4 | 66.68 | 50.8 | 12.7 |
| 560B-2" | 50.800 | 73.5 | 55.6 | 69.85 | 50.8 | 12.7 |
| 560B-2-1/8" | 53.975 | 75.6 | / | 76.2 | 57.2 | 14.3 |
| 560B-2-1/4" | 57.150 | 80 | 65 | 79.38 | 57.2 | 14.3 |
| 560B-2-3/8" | 60.325 | 79.6 | / | 82.55 | 57.2 | 14.3 |
| 560B-2-1/2" | 63.500 | 84.9 | 70 | 85.73 | 60.3 | 14.3 |
| 560B-2-5/8" | 66.675 | 84.6 | / | 85.725 | 65.1 | 15.9 |
| 560B-2-3/4" | 69.850 | 93 | / | 88.9 | 65.1 | 15.9 |
| 560B-3" | 76.200 | 102 | / | 98.425 | 68.3 | 15.9 |
Operating Conditions
| Pressure:≤0.8Mpa |
| Rotation Speed:≤10m/sec |
| Temperature:≤-40~150°C |
| Applications: |
| Oil,water and general corrosive liquid.use in auto-cooling pumps,centrifugal pumps,submersible pumps and general industrial pumps. |
| Design feature: |
| Non-clogging single coil spring self aligning feature compensates for excessine shaft.suitable for many specifications and designs. |
MATERIAL :
| 1 | Stationary Ring | Ceramic/SiC/TC |
| 2 | Rotary Ring | Carbon/SiC/TC/SUS304 |
| 3 | Secondary Seal | NBR/EPDM/Fkm |
| 4 | Sping&Other Parts | SUS304/SUS316L |
Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring
Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.
Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.
2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil
3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position
B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.
Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
