Application water pump model pairing table
| Model |
d1(inches) |
d3 |
d6 |
d7 |
11 |
13 |
| 560B-3/8" |
9.525 |
23.5 |
14.3 |
22.23 |
28.6 |
7.9 |
| 560B-1/2" |
12.700 |
26 |
17.5 |
25.4 |
28.6 |
7.9 |
| 560B-5/8" |
15.875 |
30 |
20.6 |
31.75 |
32.5 |
10.3 |
| 560B-3/4" |
19.050 |
32.5 |
23.8 |
34.93 |
32.5 |
10.3 |
| 560B-7/8" |
22.225 |
37.5 |
27.0 |
38.1 |
34.1 |
10.3 |
| 560B-1" |
25.400 |
44 |
30.2 |
41.28 |
36.5 |
11.1 |
| 560B-1-1/8" |
28.575 |
48 |
33.3 |
44.45 |
38.1 |
11.1 |
| 560B-1-1/4" |
31.750 |
50 |
36.5 |
47.63 |
38.1 |
11.1 |
| 560B-1-3/8" |
34.925 |
54.5 |
39.7 |
50.8 |
39.7 |
11.1 |
| 560B-1-1/2" |
38.100 |
58.5 |
42.9 |
53.98 |
39.7 |
11.1 |
| 560B-1-5/8" |
41.275 |
64 |
46 |
60.33 |
47.6 |
12.7 |
| 560B-1-3/4" |
44.450 |
67 |
49.2 |
63.5 |
47.6 |
12.7 |
| 560B-1-7/8" |
47.625 |
71 |
52.4 |
66.68 |
50.8 |
12.7 |
| 560B-2" |
50.800 |
73.5 |
55.6 |
69.85 |
50.8 |
12.7 |
| 560B-2-1/8" |
53.975 |
75.6 |
/ |
76.2 |
57.2 |
14.3 |
| 560B-2-1/4" |
57.150 |
80 |
65 |
79.38 |
57.2 |
14.3 |
| 560B-2-3/8" |
60.325 |
79.6 |
/ |
82.55 |
57.2 |
14.3 |
| 560B-2-1/2" |
63.500 |
84.9 |
70 |
85.73 |
60.3 |
14.3 |
| 560B-2-5/8" |
66.675 |
84.6 |
/ |
85.725 |
65.1 |
15.9 |
| 560B-2-3/4" |
69.850 |
93 |
/ |
88.9 |
65.1 |
15.9 |
| 560B-3" |
76.200 |
102 |
/ |
98.425 |
68.3 |
15.9 |
Technical Parameters
| Temperature |
-30℃~+200℃ |
| pressure |
≤1Mp a |
| Speed |
≤12m/s |
| Medium |
water pump |
Materials
| Rotary Ring |
SIC CAR CE TC |
| Stationary Ring |
SIC CAR CE TC
|
| Spring |
SUS304/SUS316 |
| Stationary Seat |
SUS304/SUS316 |
| Secondary Seal |
Fkm/EPDM
|
| Rotary Ring Holder |
SUS304/SUS316 |
Product Description

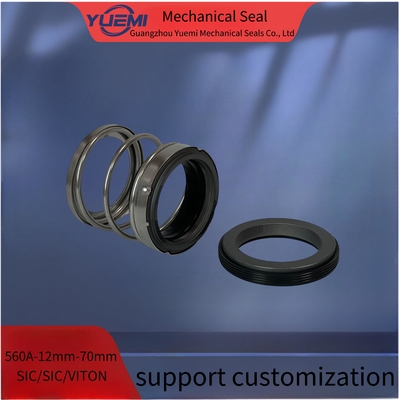

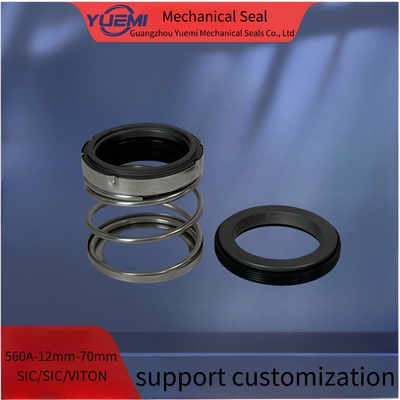

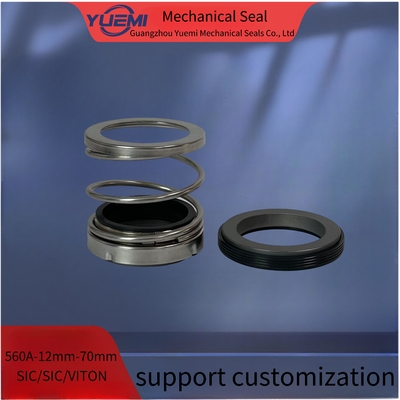

Mechanical seal in the YM560B is the ideal for general-purpose applications,designed for large batch production. Efficient stock keeping due to easily interchangeable parts.Type 560B series is widely used in the Centrifugal pumps, turbine pumps, compressors, hot water pumps and other rotary shaft equipment.
Products Features
Single and ealstomer bellows mechanical seal
Bi-directional
Non-sliding design structure,elastomer bellows automatically compensates for primary ring wear
YM560B,YM560K,YM560C,YM560A show difference in the dimensional data, avaliable with different standard working lengths.
Vailable in metric and inch sizes
EA560A can also be used as double face mechanical seals in two sets arrangement
Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring
Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.
Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.
2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil
3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position
B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.
Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
