Product Details:
|
| Pump: | Hitachi Pump | Usage: | Unbalanced Seal |
|---|---|---|---|
| Shaft Diameter: | 10mm-70mm | Secondary Sealing: | Fkm SIC SIC |
| Standard Or Nonstandard: | Standard | Type: | Single Spring |
| Highlight: | Motorcycle Parts Water pump mechanical seal,Pump Diffuser Water pump mechanical seal,560A-10mm-70mm Water pump mechanical seal |
||

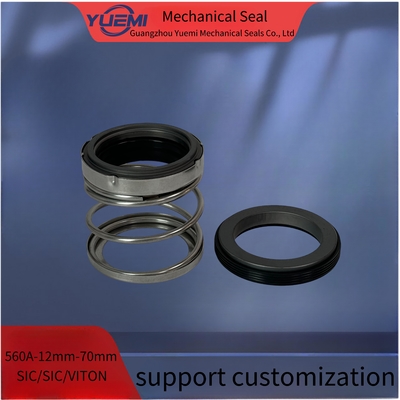

YM560A is a very popular single spring mechanical seal type, which is widely used in various pumps.
It can replace MTU FP/T3S, Burgamann EA560, STERLING PNL, John Crane Seal, Flowserve Seal and Other seals
Application water pump model pairing table
| Model | d1(mm) | d3 | d6 | d7 | 11 | 13 |
| 560A-10 | 10 | 23.5 | 16 | 24 | 25 | 7 |
| 560A-11 | 11 | 23.5 | 16 | 24 | 25 | 7 |
| 560A-12 | 12 | 26 | 17 | 26 | 25 | 7 |
| 560A-14 | 14 | 28 | 21 | 28 | 25.5 | 7 |
| 560A-15 | 15 | 30 | 21 | 28 | 29.5 | 7 |
| 560A-16 | 16 | 32 | 22 | 28/32 | 33.5 | 10 |
| 560A-18 | 18 | 32.5 | 25 | 35 | 36.5 | 10 |
| 560A-19 | 19 | 32.5 | 25 | 35 | 36.5 | 10 |
| 560A-20 | 20 | 35.5 | 27 | 38 | 38 | 10 |
| 560A-22 | 22 | 37.5 | 29 | 38/40 | 40.3 | 10 |
| 560A-25 | 25 | 42 | 32 | 44 | 39.3 | 10 |
| 560A-28 | 28 | 47 | 34 | 46 | 40 | 10.0 |
| 560A-30S | 30 | 46 | 35 | 45 | 38.2 | 7.5 |
| 560A-30L | 30 | 48 | 38 | 50 | 40 | 10.0 |
| 560A-32 | 32 | 50 | 40 | 54 | 40 | 10 |
| 560A-35 | 35 | 54.5 | 44 | 58 | 42 | 10 |
| 560A-38 | 38 | 58.5 | 46 | 60 | 42.6 | 10 |
| 560A-40 | 40 | 62.5 | 48 | 64 | 42.6 | 10 |
| 560A-45 | 45 | 66.5 | 52 | 66 | 45 | 10 |
| 560A-50 | 50 | 72.5 | 58 | 72 | 54.6 | 11.5 |
| 560A-55S | 55 | 72 | 60 | 75 | 59.4 | 12 |
| 560A-55L | 55 | 76 | 60 | 78 | 59.8 | 12 |
| 560A-60 | 60 | 80 | 65 | 80 | 63 | 12 |
| 560A-65 | 65 | 85 | 70 | 85 | 64 | 13 |
| 560A-70 | 70 | 92 | 75 | 92 | 60 | 11 |
Technical Parameters
| Temperature | -30℃~+200℃ |
| pressure | ≤1.2Mp a |
| Speed | ≤10m/s |
| Medium | sewage |
Materials
| Rotary Ring | SIC CAR |
| Stationary Ring |
SIC CAR |
| Spring | SUS304/SUS316 |
| Stationary Seat | SUS304/SUS316 |
| Secondary Seal |
Fkm/EPDM |
| Rotary Ring Holder | SUS304/SUS316 |
Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring
Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.
Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.
2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil
3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position
B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.
Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
