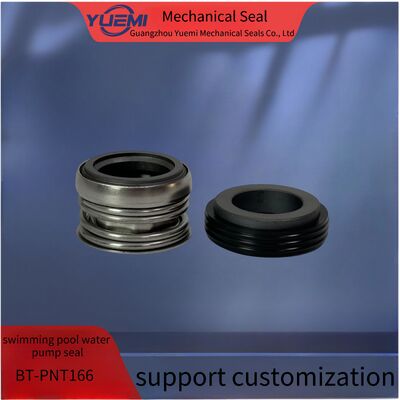

YUEMI Seal Type 166 replaces:
John Crane Type ,Sealol 60L,Pac-Seal 16 ,US Seal A
| Model |
d1(inches) |
d3 |
d7 |
11 |
13 |
| 166-5/16" |
7.938 |
23.29 |
25.4 |
24.5 |
7.9 |
| 166-3/8" |
9.525 |
23.29 |
22.225 |
23.80 |
7.14 |
| 166-1/2" |
12.700 |
23.29 |
25.400 |
23.01 |
6.35 |
| 166-5/8" |
15.875 |
30.10 |
31.750 |
28.55 |
10.31 |
| 166-3/4" |
19.050 |
33.07 |
34.925 |
28.55 |
10.31 |
| 166-7/8" |
22.225 |
36.30 |
38.100 |
30.94 |
10.31 |
| 166-1" |
25.400 |
39.42 |
41.275 |
31.72 |
11.10 |
TechnicalParameters
Temperature:
.40°F(-40°C)~400°F(204°C)
Pressure:150 PSl*
Speed:12-15m/s
Unitized Design:No-hassle handling,Easy toinstall
Single Coil Spring Helps prevent clogging
Advantage:
Greatly simplifies installation,No adhesive on seal face,Prevents penetration ofsolids into the seal head,Cushions rotary seal face without metal toseal face contact
ldeal for:PoolPumps,Spa Pumps,SmallerIndustrialand Commercialapplications
A Variety of Mating Rings:0-RingMount,Cup Mount,DIN
Hex Drive:Will not disengage during operation,Protects the elastomer bellows from damage
Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring
Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.
Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.
2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil
3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position
B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.
Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
