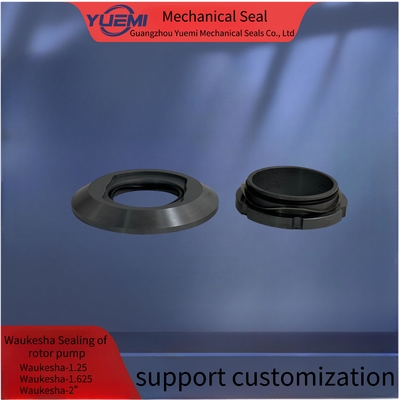

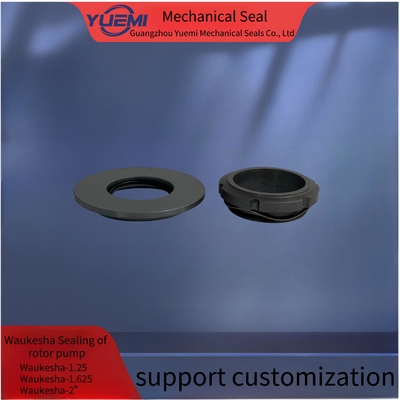

WAUKESHA 101671 SPX Walker Food Machine/Rotary Pump/Single End Mechanical Seal/WAUKESHA-1.25/1.625/2

​

Technical Parameters

Materials

Replacement for Mechanical seals of Waukesha Universal 1 pumps.
Pump Model :
Universal l Parts Models 6,14,15,18,24
UniversallParts Models 30.33.34
Universall Parts Model 40.
UniversallParts Models 60,64,130,133.134
Universal l Parts Models 220,223,224.
UniversallParts Models 320.323.324
Mechanical seal of Waukesha Universal l,
Pump model:
Waukesha Universalll Parts Models 6,14,15,18,24
Waukesha Universalll Parts Models 30,33,34
Waukesha Universalll Parts Models 40
Waukesha Universalll Parts Models 45,60,64,130

Waukesha Universalll Parts Models 45,60,64,130.134
Waukesha Universalll Parts Models 180,184.220.224Waukesha Universalll Parts Models 210.213.224
320,323,324
2.Our seals can replace the original seals.
3.Application: seals are primarily used in Clean
water,sewage water,oil and other moderately corrosivefluids etc.
4.Standard:the products are in according with
Din24960,1S03069,en12576,AP1682 standards
5.0EM and Customized products is welcomed
6.Factory Price,High Quality ,Fast Delivery and Best
Sevice.

Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring

Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.

Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.

2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil

3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position

B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.

Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.

We would like lo sincerely ooperale with Clients to supply high qually products and senice We beleve in establishing a long:erm cooperalive relalionshipis lhe key to suceess
