Product Details:
|
| Traemark: | YUEMI | Usage: | Unbalanced |
|---|---|---|---|
| Shaft Diameter: | HI-28.575 HI-38.1 HI-50.8 | Secondary Sealing: | Fkm NBR CA SIC |
| Transport Package: | Box | Pressure Range: | Up To 10 Bar |
| Liner Speed: | ≤ 15m/s | Function: | Sewage Pump |
| Stationary Ring: | Ceramic/Sic/TC | ||
| Highlight: | impeller end sewage pump mechanical seal,HI-38.1mm sewage pump mechanical seal,HI-28.575mm sewage pump mechanical seal |
||
![]()
![]()
![]()

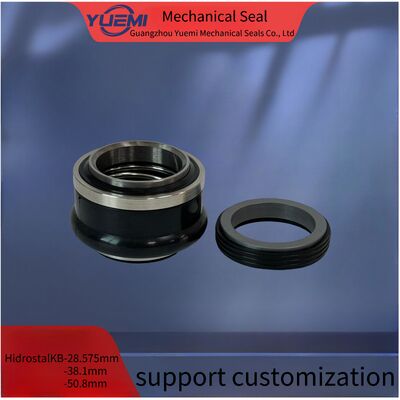

Hidrostal sewage pump mechanical seal HI-28.575mm HI-38.1mm HI-50.8mm impeller end mechanical seal
Mechanical Seals for:
Centrifugal Pumps
Slurry Pumps
Submersible Pumps
Mixers & Agitators
Compressors
Autoclaves
Pulpers
![]()
| Size d | D3 | D1 | L1 | L2 |
| 1-1/8" | 50.00 | 44.45 | 30.00 | 11.10 |
| 1-1/2" | 66.00 | 53.975 | 35.50 | 10.00 |
| 2" | 75.50 | 69.85 | 45.20 | 13.00 |
Technical Parameters
| Temperature | -30℃~+200℃ |
| pressure | ≤1.2Mp a |
| Speed | ≤10m/s |
| Medium | water |
Materials
| Rotary Ring |
SiC/VIT |
| Stationary Ring |
SiC/VIT |
| Spring | SUS304/SUS316 |
| Stationary Seat | SUS304/SUS316 |
| Secondary Seal |
Fkm/EPDM |
| Rotary Ring Holder | SUS304/SUS316 |
Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring
Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.
Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.
2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil
3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position
B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.
Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
![]()
