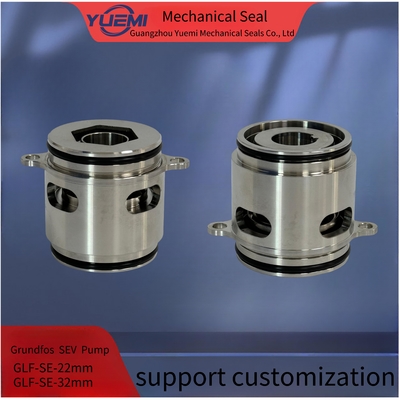

Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm

Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm
Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm
Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm

Large Image :  Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm

Product Details:
Place of Origin: Guangzhou, China
Brand Name: YUE MI
Certification: ISO SGS
Model Number: GLF-SE-22mm GLF-SE-32mm
Payment & Shipping Terms:
Minimum Order Quantity: 1/PCS
Price: US $ 1~99/PCS
Packaging Details: Details Carton
Delivery Time: 2 word days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/Set/Month
Contact Now

Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm

Description
Traemark: YUEMI Pump: Grundfos Pump
Function: Sewage Pump Usage: Unbalanced
Shaft Diameter: GLF-SE-22mm GLF-SE-32mm Secondary Sealing: Fkm
Standard Or Nonstandard: Standard Keywords: Pump Seal
Type: Single Spring Style: Mechanical Seal
Highlight:

SEV grundfos seals

,

Canned grundfos seals

,

22mm paco pump seals

Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm
Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm 0 Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm 1 Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm 2
Application Water Pump Model Pairing Table
Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm 3
MODEL D1 D3 D7 S L1 L3
SE-22 22 58 56 86 61 51
SE-32 32 71 68 98 70 60
Product Specifications
Model NO. SE-22mm~32mm
OEM/ODM Available
Sample Available
Recommended Applications Sewage Pumps, Chemical Pumps, Process Pumps
Replacement Grund Fos Pumps
Model SE
Transport Package Neutral Packing or Customized
Specification 22...32mm
Trademark YUEMI
Origin China
HS Code 8484200090
Installation Preparation Requirements
  • Shaft Outside Diameter is within tolerance ±0.05mm
  • Shaft run out <0.1mm
  • Shaft end float <0.13mm
  • No sharp edges on the shaft over the o-ring
Important Note: During installation, do not scratch or damage the o-ring. If anything is damaged, please contact us to replace with a new one.
Installation Instructions
The full set of cartridge seal is cleaned and exactly passed leakage examination before sale. To avoid damage, do not disassemble and clean the parts again before fixing.
Fitting Requirements
  • The fitting allowance between the seal and shaft is dl h6 0.8
  • There should be leading-in edge at the end of shaft
  • The outside diameter of shaft at the position of screw should be 01 0.2mm smaller, resisting the screw over-tighten
  • Lubricate the shaft with oil
Installation Steps
  1. Place the cartridge seal into the pump chamber
  2. Tighten four screw bolts of flanges, ensuring the medium leading in hole "G" at the top position
  3. Tighten four set screws and position the shaft sleeve on the shaft
  4. Remove four gauge plates (please keep them for future installation and disassembly)
  5. Connect the medium lead-in pipe with hole "G" to flush away friction heat and flush the seal chamber when pump is running
Post-Installation Check: After completing installation, turn the shaft by hand to check for rotation. If the shaft does not rotate smoothly, the seal has been improperly installed.
Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm 4 Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm 5 Canned Grundfos Seals For PACO Sewage Pump SEV SE1 GLF-SE-22mm 32mm 6
We would like to sincerely cooperate with clients to supply high quality products and service. We believe in establishing a long-term cooperative relationship is the key to success.
