Product Details:
|
| Traemark: | YUEMI | Country Of Origin: | Guangzhou, China |
|---|---|---|---|
| Item:: | FTK | Shaft Diameter: | 40mm |
| Metal Parts And Springs: | SS304,SS316 | Material: | CAR CER SSIC NBR |
| Pump: | Auto Cooling Pump | ||
| Highlight: | SS316 Ebara Mechanical Seal,Customized Ebara Mechanical Seal,SS316 bellows mechanical seal |
||
Application water pump model pairing table
| Model | d(mm) | d, | d2 | d3 | ds | d7 | l1 | 12 | 13 | 14 | l5 |
|
FTK16 |
16 20 25 40 |
18.2 | 41 | 41.5 | 23.0 | 33 | 26.5 | 7.5 | 10 | 9.0 | 5.0 |
| 21.2 | 45 | 43.8 | 27.0 | 38 | 29.0 | 7.0 | 10 | 12.0 | 5.0 | ||
| 26.4 | 52 | 51.0 | 30.5 | 47 | 34.5 | 7.0 | 13 | 14.5 | 8.5 | ||
| 41.2 | 75 | 75.0 | 50.5 | 65 | 48.6 | 12.0 | 21 | 15.6 | 13.0 |

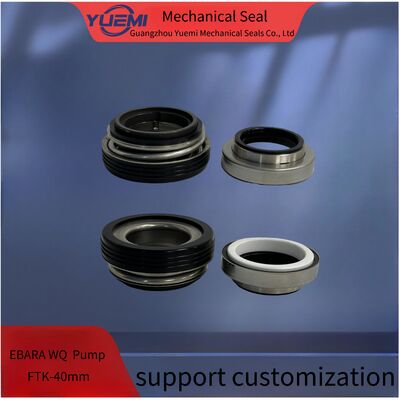

| High Quality Auto Cooling Pump Mechanical Seal | |
| Operating Limits: Pressure: ≤0.3MPa Rotary Speed: ≤9000r/min Temperature: -30ºC~+200ºC Medium: Clean water, seawater, gas engine antifreeze |
Material:
Rotary Ring(Ceramic/SiC) Stationary Ring(Plastic Carbon/Carbon/SiC)
Secondary Seal (nbr/Epdm/Hnbr/Fkm)
Spring & Other Parts (Sus304/Sus316)
|
Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring
Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.
Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.
2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil
3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position
B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.
Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
We would like lo sincerely ooperale with Clients to supply high qually products and senice We beleve in establishing a long:erm cooperalive relalionshipis lhe key to suceess
